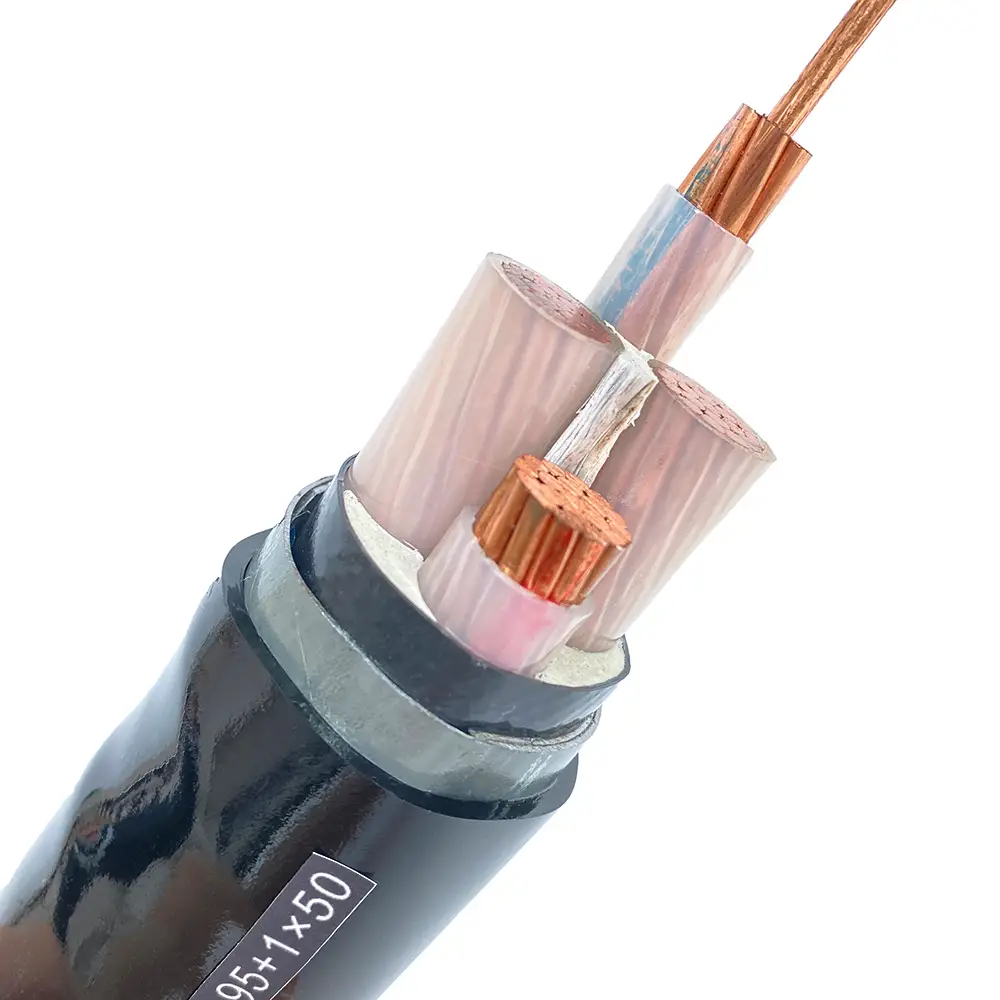

PVC Insulated Armoured Power Cable for Rated Voltage 0.6/1 KV 1

PVC Insulated Armoured Power Cable for Rated Voltage 0.6/1 KV 2

PVC Insulated Armoured Power Cable for Rated Voltage 0.6/1 KV

● Standard

This product implements: IEC 60092-376 standard.

● FUsage scenario

1. For laying in doors、intunnel in cable trench,or direct buried, able to bear external mechanical forces,but unable to bear large pulling force.

2. For laying in doors、in tunnel cable trench ,well or direct buried ,able to bear external mechanical forces and determinate pulling force.

● Conductor

Electrolytic copper, class 5 (flexible), Aluminum conductor according to IEC 60228.

● Insulation

Cross-linked polyethylene, type HF XLPE 90ºC, Conforms to IEC 60092-353.

● The standard identification of insulated conductors according to HD 308 is the following

1 x Natural

3 x Brown + Black + Grey

4 x Brown + Black + Grey + Blue

Other colors available on request.

Insulation core with white insulation printed with black numerical markings

Sheath prints manufacturer's name, model, voltage, specification, length marking, etc.

● Outer sheath

LSHF polyolefin outer sheath type SHF1 according to IEC 60092-360. Black color.

Inquiry

Write a Review

Type	Cable name	Scope of use
VV22	Copper conductor PVC insulated steel tape armoured PVC sheathed Power cable	For laying in doors、 intunnel in cable tr- ench,or direct buried, able to bear external mechanical forces,but unable to bear large pulling force.
VLV22	Aluminum conductor PVC insulated steel tape armoured PVC sheathed Power cable
VV23	Copper conductor PVC insulated steel tape armoured PE sheathed Power cable
VLV23	Aluminum conductor PVC insulated steel tape armoured PE sheathed Power cable
VV32	Copper conductor PVC insulated steel wire armoured PVC sheathed Power cable	For laying in doors、in tunnel cable trench ,well or direct buried ,able to bear external mechanical forces and determinate pulling force
VLV32	Aluminum conductor PVC insulated steel wire armoured PVC sheathed Power cable
VV33	Copper conductor PVC insulated steel wire armoured PE sheathed Power cable
VLV33	Aluminum conductor PVC insulated steel wire armoured PE sheathed Power cable

Cable Category	Cable name	Cable model
Marine control cable	Ethylene propylene insulation PVC inner sheath copper wire braided armored marine control cable	CKEV80/DA/SA/NA
	Ethylene propylene insulation PVC inner sheath blackberry steel wire braided armored marine control cable	CKEV90/DA/SA/NA
	Ethylene propylene insulation PVC inner sheath copper wire braid armored PVC outer sheath marine control cable	CKEV82/DA/SA/NA
	Ethylene-Propylene insulation PVC inner sheath steel wire braid armored PVC outer sheath marine control cable	CKEV92/DA/SA/NA
	Ethylene propylene insulation cross-linked polyolefin sheathed marine control cable	CKEPJ/SC/NC
	Ethylene propylene insulation cross-linked polyolefin inner sheath copper wire braid armored marine control cable	CKEPJ80/SC/NC
	Ethylene Propylene insulation Cross-linked Polyolefin Inner Sheath Steel Wire Braided Armor Marine Control Cable	CKEPJ90/SC/NC
	Ethylene propylene insulation cross-linked polyolefin inner sheath copper wire braid armored cross-linked polyolefin outer sheath marine control cable	CKEPJ85/SC/NC
	Ethylene propylene insulation cross-linked polyolefin inner sheath steel wire braid armored cross-linked polyolefin outer sheath marine control cable	CKEPJ95/SCNC
	Ethylene Propylene insulation Polyolefin Sheathed Marine Control Cable	CKEPF/SC/NC
	Ethylene propylene insulation polyolefin inner sheath copper wire braid armored marine control cable	CKEPF80/SC/NC
	Ethylene propylene insulation polyolefin inner sheath steel wire braid armored marine control cable	CKEPF90/SC/NC
	Ethylene propylene insulation polyolefin inner sheath copper wire braid armored polyolefin outer sheath tire control cable	CKEPF86/SC/NC
	Ethylene propylene insulation polyolefin inner sheath steel wire braid armored polyolefin outer sheath marine control cable	CKEPF96/SC/NC

Product description

PVC Insulated Armoured Power Cable for Rated Voltage 0.6/1 KV 3

Electrical performance

Cables rated at AC150/250V

PVC Insulated Armoured Power Cable for Rated Voltage 0.6/1 KV 4

Directly in the air

1.The distance between cable centers of singal-core cables laid in parallel: cross-scection area of corductor<185mm² : 2 times of the cable diameter corss-sectional area of conductor>240mm²: 90mm.
2.Ambient air temperature: 40℃.
3.Max.continous operating temperature of conductor:70℃

Directly in the ground

1.The single-core cables are installedseparately, the distance between the cable center is 2 times of the cable Diameter.
2.Soil temperature:25℃
3.Max.continous operating temperatureof conductor:70℃
4.Thermal resistivity of soil: 1.2℃ • m/W.
5.Depth of Direct-Buried:0. 7m.

Fire performance

The fire resistance of the cable is in accordance with IEC 60332-1-2 or IEC 60332-3-22.
Fire resistance of cables in accordance with IEC 60331-21.
Fire non-propagation according to IEC 60332-3-22. LSHF (Low Smoke Halogen Free) according to IEC 60754-1. Low smoke emission according to IEC 61034: light transmittance > 60%. Low corrosive gases emission according to IEC 60754-2.

Mechanical properties

The minimum bending radius of single-core cables is 12 times the outer diameter of the cable.
The minimum bending radius of a 3-core cable is 9 times the outer diameter of the cable.

Products application

1. power transmission and distribution system: used in medium and low voltage power transmission and distribution network to transmit power from substation to various places of power consumption.
2. Factories and industrial facilities: to supply power to equipment and machines in industrial environments such as factories and workshops.
3. commercial and civil buildings: distributing and connecting electricity within buildings.
4. infrastructure construction: power supply in engineering projects such as roads and bridges.

Current carrying rating factors for different ambient air temperature

Current carrying rating factors for different soil temperature

Product display

钢带-钢丝铠装对比图 (3)

24页 3 (2)

24页 4 (2)

24页 5 (2)

24页 6 (2)

25页 1 (2)

25页 3 (2)

25页 4 (2)

26页 1 (2)

26页 2 (2)

钢丝铠装

Power cable certificate display

power cable -1

power cable 2

LOw voltage power cable-1

ISO45001

挤出绝缘1-3kV电力电缆 CE-C-0815-16-157-04-1A(1)

挤出绝缘1-3kV电力电缆CE-C-0815-16-157-04-1A(2)

√CE-C-0815-16-157-04-1A(2)

√CE-C-0815-16-157-04-1A(1)

√CE C 0815 16 157 02 9A(1)6-35kV YJV YJLV YJY等

√CE C 0815 16 157 02 9A(1)6-35kV YJV YJLV YJY等(2)

XLPE insulated power cable for rated voltage 3.6/6kV

Type		No.of cores	Nominal cross- sectional area mm²
Copper conductor	Aluminium conductor	No.of cores	Nominal cross- sectional area mm²
VV VY VV22 VV23	VLV VLY VLV22 VLV23	1	1.5~800 10~800
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	2	1.5~400 4~400 10~400
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	3	1.5~630 4~630 10~630
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	4	1.5~500 4~500 10~500
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	3+1	1.5~630 4~630 10~630
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	5	1.5~500 4~500 10~500
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	4+1	1.5~500 4~500 10~500
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	3+2	1.5~500 4~500 10~500
