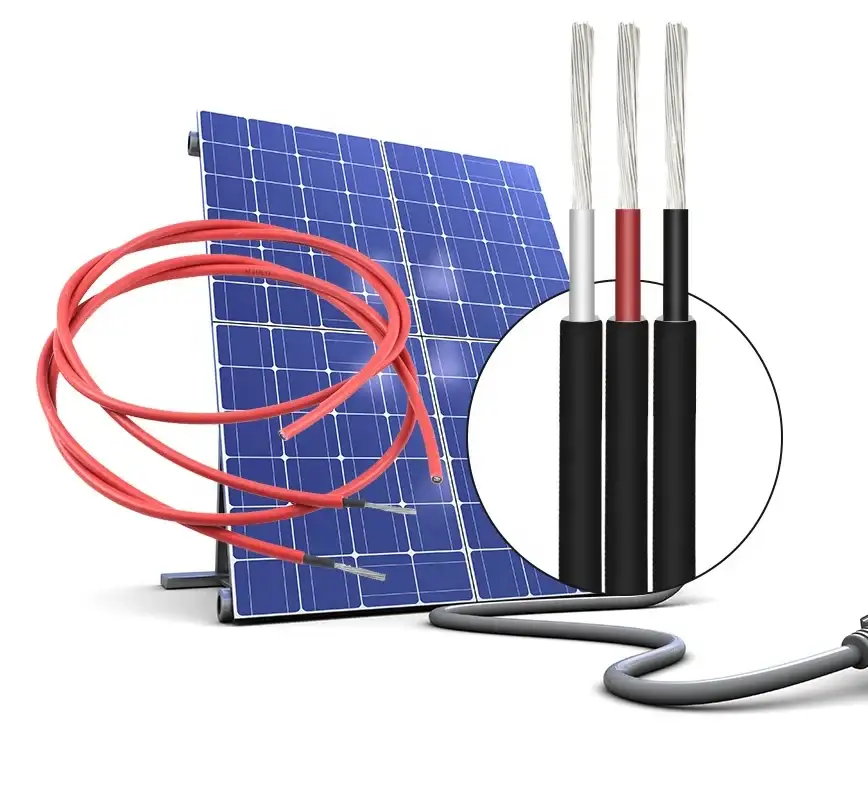

1.5kv En 50618 H1z2z2-k 1-10m 6mm2 Xlpe Solar Power Cable Red Tuv Solar Cable Roll Pv Cable
5.0
Samples:
$2.0/meter | Min. order : 1 meter
Shipping:
Ocean freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-500(meters):20(days),>500(meters):To be negotiated(days)
Customization:
Customized logo (Min. Order: 10000 sets),Customized packaging (Min. Order: 10000 sets)
Model Number:
H1Z2Z2-K
Brand Name:
WUCAI
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Ambient temperature
-40℃ ~+90℃
Standards
BS EN 50618:2014
Certificate
TUV
Sheath
125℃ crosslinked polyolefin
Rated voltage
AC Uo/U1.0/1.0kV, DC 1.5kV
Conductor Type
5 Flexible Copper
Core
1
Insulation
LSZH XLPO
Conductor
XLPO insulation LSZH single core 1x2.5mm2 tinned copper solar cable
Jacket
XLPO
Conductor Material
Tinned Copper
Application
photovoltaic systems, Photovoltaic Power Generation System
Type
LOW VOLTAGE
Insulation Material
XLPO
Place of Origin
China
Recommend Products
Product Name | XLPO insulated LSZH sheathed solar photovoltaic cable |
Model | H1Z2Z2-k |
Conductor | Class 5 tinned copper conductor |
No. of Cores | 1 |
Conductor Type | stranded |
Insulation | 125℃ cross-linked polyolefin |
Jacket(Sheath) | 125℃ cross-linked polyolefin |
Standards | EN 50618 |
DC | 1.5kV |
AC | 1.0/1.0kV |
Nominal cross-sectional area of conductor(mm²) | 1.5~240(mm²) |
Application | Photovoltaic power generation system |
Colors | Red Black or custom |
Ambient temperature | -40℃ ~+90℃ |
Max. Temperature at conductor | +120 ℃ |
