Wire And Cable Guangdong 2x16 Cable Electric Pvc Electrical Cable In Cambodia Africa Market
5.0
Samples:
$1.0/meter | Min. order : 1 meter
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1000(meters):15(days),>1000(meters):To be negotiated(days)
Customization:
Graphic customization (Min. Order: 1000 sets),Customized packaging (Min. Order: 1000 sets),Customized logo (Min. Order: 1000 sets)
Model Number:
RVS
Brand Name:
wucai
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Standard
GB/T8734-2016
Cross section
0.5 0.75 1 1.5 2.5 mm
MOQ
1000 Meters
Voltage
300/300V,300/500V,450/750V
Certification
CE,CCC,SABS,TUV,RoHS
Rated voltage
300V 450V 50V 750V
Conductor Type
Flexible, Stranded
Core
2 Core
Insulation
PVC
Conductor
Copper 99.995%
Product name

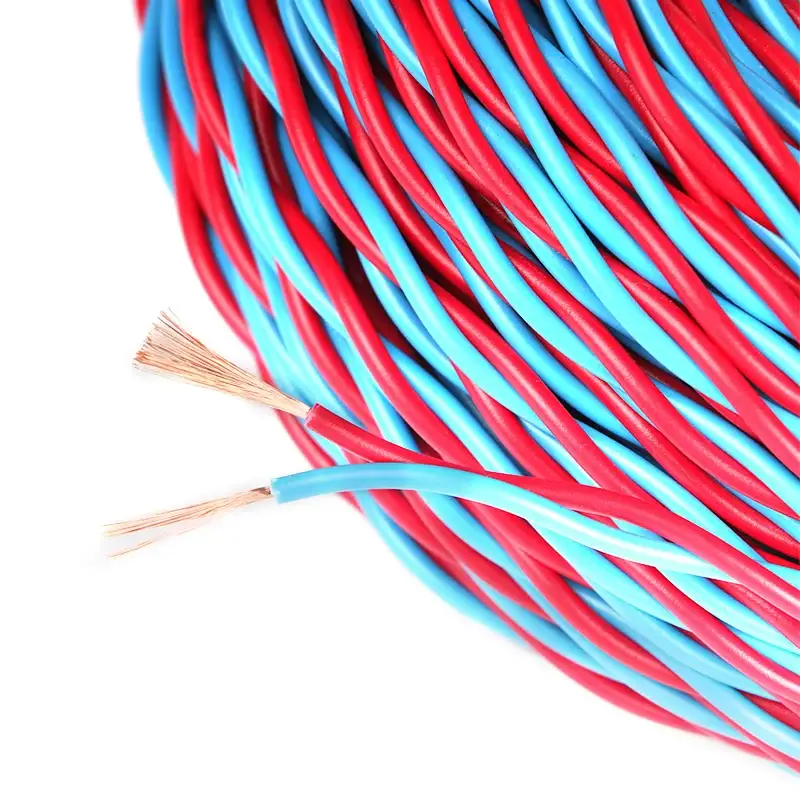

Fire Alarm Cable RVS Flexible Twisted Pair Wire
Conductor Material
Copper
Application
Overhead
Type
insulated
Insulation Material
PVC
Place of Origin
Jiangsu, China
Recommend Products
Products Description
RVS 300/300V
Application:1. Detector circuit for automatic fire alarm system.
2. Applicable to household appliances, small electric tools, and power lighting lines. Double white core is used for direct connection of lamp head line, red and blue core for fire protection, alarm, etc., red and white core for broadcasting, telephone line, red and black core for broadcasting line.
3. Used for connecting power amplifier with audio equipment and broadcasting system to transmit audio signal amplified and processed by power amplifier.
4. Simple lighting wires, such as temporary lighting wires
Product Paramenters
Type | RVS |
Product Name | 2 Core PVC Insulated Fire Alarm Cable Twisted Pair Flexible Wire |
Rated Voltage V | 300/300V,300/500V,450/750V |
No. of cores | 2 |
Nominal cross sectional area of conductor mm² | 0.5~6 |
Standards | GB/T8734-2016 |
Colors | red and blue, red and green, red and yellow, red and black, yellow and green |
Cores and section area mm2 | Max wire core diameter | Noninal insulaticn thickness mm | Mean overall diameter Max mm | Approx, weight kg/km | Max.D.C resistance of copper conductor (20℃) Ω/km | Min. insulation resistance (70℃） MQ·km | ||
Plain | Metal-coated | |||||||
2x0.5 | 0.16 | 0.8 | 6.0 | 22.0 | 39.0 | 40.1 | 0.016 | |
2x0.75 | 0.16 | 0.8 | 6.2 | 28.1 | 26.0 | 26.7 | 0.014 | |
2x1.0 | 0.16 | 0.8 | 6.6 | 31.9 | 19.5 | 20.0 | 0.013 | |
2x1.5 | 0.16 | 0.8 | 7.2 | 42.5 | 13.3 | 13.7 | 0.012 | |
2x2.5 | 0.16 | 0.8 | 8.2 | 61.5 | 7.98 | 8.21 | 0.0095 | |
2x4 | 0.16 | 0.8 | 9.5 | 93.4 | 4.95 | 5.09 | 0.0079 | |
2x6 | 0.21 | 1.0 | 11.6 | 141.0 | 3.30 | 3.39 | 0.0081 | |
Details Images
Customer Photos
Company Profile
Wuxi Jiangnan Cable Co., Ltd. (hereinafter referred to as “the Company”)a National Key High and New Tech Enterprise specialized in production, sales and research on cables & wires. It is a national customer satisfaction benchmark enterprise, "Top 500 China's Manufacturing Industry", "Top 500 China's Private Enterprises", "Top 500China's Machinery Industry", and "Top 500 China's Energy Groups", "China's Quality Integrity Enterprise". The "Wu Cai" brand was awarded the title of "Top 500 Asian Brands" and "Internationally Famous Brands Focused on Cultivation and Development in Jiangsu Province".
The company covers an area of more than 650,000 square meters, with a construction area of 400,000 square meters, and total assets of more than 8 billion Yuan. There are more than 2,200 employees, among them, junior and senior technical and managerial personnel account for more than 30% of the total number of employees.
The company is located in the national wire and cable industry base -- Guanlin Town, Yixing City, Jiangsu Province. It has always adhered to the business philosophy of "integrity and pragmatic, customer first" and is willing to supply more high quality products, perfect service, as always with new and old friends at home and abroad for sincere cooperation, mutual benefit and win-win!
Certifications
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 7-15 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
