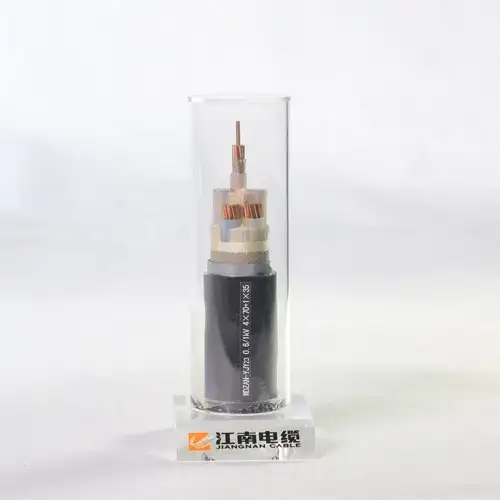

Wholesale Durable Yjv Yjlv Underground Low Voltage 1 Kv Cu/al/xlpe/pvc Power Cable
5.0
Model:
V N-VV VLV YJV YJLV N-YJV WDZC-YJY WDZCN-YJY
Shipping:
Ocean freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-500(meters):20(days),>500(meters):To be negotiated(days)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Diameter
customized
Sample
Acceptable
Length
customized
Armoured
steel tape
Voltage
0.6/1KV
Color
custom colors
Conductor Type
Solid
Core
Multicore
Conductor
copper
Conductor Material
Copper
Application
Underground
Type
insulated
Insulation Material
PVC
Place of Origin
Jiangsu, China
Why Choose Us
Products Description
Advantage：
The XLPE insulated cable uses chemical or physical methods to convert the polyethylene molecule of the cable insulation from a linear molecular structure to a main network molecular structure. That is, the thermoplastic PE is transformed into thermosetting XLPE. Thereby greatly improving its heat resistance and mechanical properties, reducing its shrinkage, making it no longer melted after being heated, and maintaining excellent electrical properties.
Imported high purity oxygen free copper, resistance can stand the test, safety is guaranteed.
Imported environmental protection materials, wear resistance, oil resistance, corrosion resistance, more durable service life.
3+2 Core | ||||||
Square Numbers | External Diameter | Application | Meters | |||
3x4mm2+2x2.5mm2 | 14.0mm | For laying indoors, in tunnels and in pipelines, it can withstand certain laying traction, but the cable cannot bear external mechanical force, and single core cable is not allowed to be laid in magnetic material pipes | 1-100 Meters | |||
3x6mm2+2x4mm2 | 15.3mm | 1-100 Meters | ||||
3x10mm2+2x6mm2 | 17.6mm | 1-100 Meters | ||||
3x16mm2+2x10mm2 | 20.3mm | 1-100 Meters | ||||
3x25mm2+2x16mm2 | 24.0mm | 1-100 Meters | ||||
3x35mm2+2x16mm2 | 25.9mm | 1-100 Meters | ||||
3x50mm2+2x25mm2 | 30.4mm | 1-100 Meters | ||||
3x70mm2+2x35mm2 | 34.8mm | 1-100 Meters | ||||
3x95mm2+2x50mm2 | 39.7mm | 1-100 Meters | ||||
3x120mm2+2x70mm2 | 44.6mm | 1-100 Meters | ||||
3x150mm2+2x70mm2 | 48.6mm | 1-100 Meters | ||||
3x185mm2+2x95mm2 | 54.0mm | 1-100 Meters | ||||
3x240mm2+2x120mm2 | 60.2mm | 1-100 Meters | ||||
3x300mm2+2x150mm2 | 66.0mm | 1-100 Meters | ||||
4+1 Core | ||||||
Square Numbers | External Diameter | Application | Meters | |||
4x4mm2+1x2.5mm2 | 14.2mm | For laying indoors, in tunnels and in pipelines, it can withstand certain laying traction, but the cable cannot bear external mechanical force, and single core cable is not allowed to be laid in magnetic material pipes | 1-1000 Meters | |||
4x6mm2+1x4mm2 | 15.6mm | 1-1000 Meters | ||||
4x10mm2+1x6mm2 | 18.1mm | 1-1000 Meters | ||||
4x16mm2+1x10mm2 | 20.8mm | 1-1000 Meters | ||||
4x25mm2+1x16mm2 | 24.9mm | 1-1000 Meters | ||||
4x35mm2+1x16mm2 | 27.1mm | 1-1000 Meters | ||||
4x50mm2+1x25mm2 | 31.6mm | 1-1000 Meters | ||||
4x70mm2+1x35mm2 | 36.5mm | 1-1000 Meters | ||||
4x95mm2+1x50mm2 | 41.6mm | 1-1000 Meters | ||||
4x120mm2+1x70mm2 | 46.3mm | 1-1000 Meters | ||||
4x150mm2+1x70mm2 | 51.2mm | 1-1000 Meters | ||||
4x185mm2+1x95mm2 | 56.8mm | 1-1000 Meters | ||||
4x240mm2+1x120mm2 | 63.2mm | 1-1000 Meters | ||||
4x300mm2+1x150mm2 | 70.0mm | 1-1000 Meters | ||||
product display
Recommend Products
Company Profile
The company is located in the national wire and cable industry base -- Guanlin Town, Yixing City, Jiangsu Province. It has always adhered to the business philosophy of "integrity and pragmatic, customer first" and is willing to supply more high quality products, perfect service, as always with new and old friends at home and abroad for sincere cooperation, mutual benefit and win-win!
Packaging and shipping
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 7-15 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
