Rvv Ultra Flexible Copper Conductor Pvc Insulated Pvc Sheathed Wire 300/500v Air Conditioning Wire
5.0
Samples:
$0.01/meter | Min. order : 1 meter
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1000(meters):15(days),>1000(meters):To be negotiated(days)
Customization:
Customized logo (Min. Order: 1000 sets),Customized packaging (Min. Order: 1000 sets),Graphic customization (Min. Order: 1000 sets)
Model Number:
RVV
Brand Name:
JiangNan
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
cross-sectional area of conductor
0.5~0.75(mm²)/0.75-6(mm²)
Standards
JB/T8734-2016, 60227 IEC
Applications
Household appliances, electrical equipment, instruments,
Sheath
PVC
Voltage
300/300V, 300/500V
Conductor Type
flexible
Core
2-11 Cores
Insulation
PVC
Conductor
99.9% Pure Copper
Product name
PVC insulated and sheathed flexible cord
Jacket
PVC
Conductor Material
Copper
Application
flexible system control
Type
LOW VOLTAGE
Insulation Material
PVC
Place of Origin
China

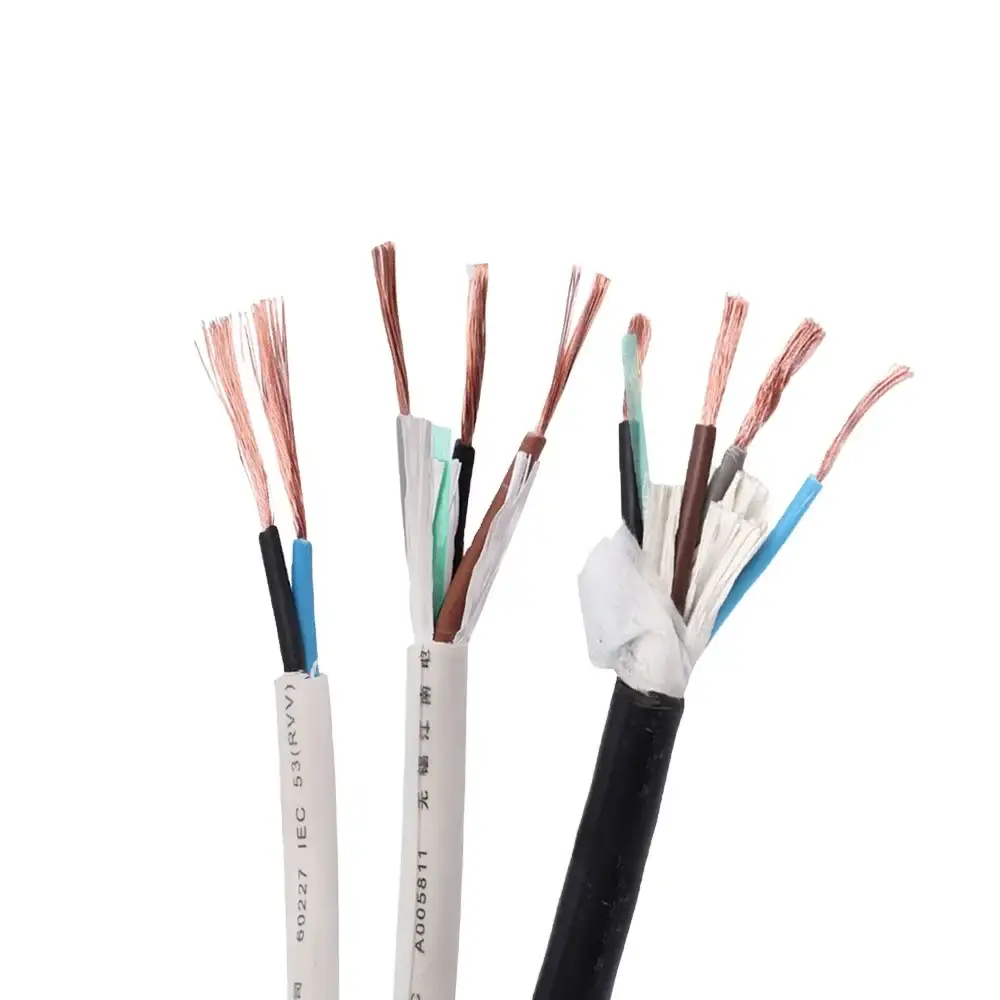

Copper conductor PVC insulated and sheathed flexible cord
Mainly used in Household appliances, electrical equipment, instruments, automation equipment, household lighting cables, security burglar alarm systems, high-rise building intercom systems
Model | Standards | Product Name |
60227 IEC 52(RVV) | GB/T5023-2008 IEC 60227 | Light PVC sheathed flexible cord |
60227 IEC 53(RVV) | GB/T5023-2008 IEC 60227 | Ordinary PVC sheathed flexible cord |
60227 IEC 56(RVV90) | GB/T5023-2008 IEC 60227 | Ordinary PVC sheathed flexible cord |
60227 IEC 57(RVV90) | GB/T5023-2008 IEC 60227 | Ordinary PVC sheathed flexible cord |
RVV | JB/T8734-2016 | Copper conductor PVC insulated and sheathed flexible cord |
Model | Rated voltage V | No.of cores | Nominal cross-sectional area of conductor(mm²) | Max. operating temperature of the conductor | ||||
60227 IEC 52(RVV) | 300/300 | 2.3 | 0.5 〜0.75 | 70°C | ||||
60227 IEC 53(RVV) | 300/500 | 2,3~24 | 0.75-6 | 70°C | ||||
60227 IEC 56(RVV90) | 300/300 | 2,3 | 0.5-0.75 | 90°C | ||||
60227 IEC 57(RVV-90) | 300/500 | 2,3,4,5 | 0.75 〜2.5 | 90°C | ||||
RVV | 300/500 | 2~41 | 0.5-10 | 70℃ | ||||
1) Number of cores:4,5,6, 7,10, M, 16,19 and 24 2) Nuirber of cores:4. 5,6, 7,12,18.27,36,48 and 60 Note： The special types of fire-retardant, flame-resisting, low-fume and low-halogan as well as acid-alkaliproof for these cables may be supplied upon requests. | ||||||||
Wuxi Jiangnan Cable Co., Ltd. (hereinafter referred to as “the Company”)a National Key High and New Tech Enterprise specialized in production, sales and research on cables & wires. It is a national customer satisfaction benchmark enterprise, "Top 500 China's Manufacturing Industry", "Top 500 China's Private Enterprises", "Top 500China's Machinery Industry", and "Top 500 China's Energy Groups", "China's Quality Integrity Enterprise". The "Wu Cai" brand was awarded the title of "Top 500 Asian Brands" and "Internationally Famous Brands Focused on Cultivation and Development in Jiangsu Province".
The company covers an area of more than 650,000 square meters, with a construction area of 400,000 square meters, and total assets of more than 8 billion Yuan. There are more than 2,200 employees, among them, junior and senior technical and managerial personnel account for more than 30% of the total number of employees.
The company is located in the national wire and cable industry base -- Guanlin Town, Yixing City, Jiangsu Province. It has always adhered to the business philosophy of "integrity and pragmatic, customer first" and is willing to supply more high quality products, perfect service, as always with new and old friends at home and abroad for sincere cooperation, mutual benefit and win-win!
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 7-15 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
