Focusing On The Research, Development, Production And Sales Of Wires And Cables.

Rated voltager up to including 1.8/3kV Wind energy cable 1
Rated voltager up to including 1.8/3kV Wind energy cable 1

Rated voltager up to including 1.8/3kV Wind energy cable

Standard:

Enterprise standard and technical standard of TICW 1-2009

Applications:

This product has good performance of flexibility, reverse-resistant,cold-resistant,abrasion

resistant. It is suitable for the moveable or fixed place in wind power plant.

Operating characteristics:

1. Rated voltage:up to including 1.83kV power cable.

2. Permissible Max.Continuous operating temperature of conductor:90℃.

3. When cable is laid in ambient temperature 0℃,there is no need of preheating and limitation of fall.

4. Permissible Min. operating temperature of conductor:ordinary 90℃; cold-resistant:

-40℃;bitter cold-resistant: -55℃.

5. The allowable bending radius: not less than 6 times of the cable diameter.

Products' Range:

Power cable for sectional area at 400mm² and bellow.

    oops...!

    no product data.

    Go to homepage
    Code Name
    FDEF-25(40) Copper conductor insulated ethylene-propylene neoprene rubber sheathed reverse-resistant and cold-resistant cable for wind energy flexible cable
    FDES-25(40) Copper conductor ethylene-propylene insulated thermoplast 'ics type neoprene rubber sheathed (cold-resistant) reverse-resistant cable for wind energy flexible cable
    FDGG-40(-55) Copper conductor silicon rubber insulated silicon rubber sheathed (bitter cold-resistant) reverse-resistant cable for wind energy flexible cable
    FDGU-40(-55) Copper conductor silicon rubber insulated pu-elastomer sheathed (bitter cold-resistant) reverse-resistant and cable for wind energy flexible cable

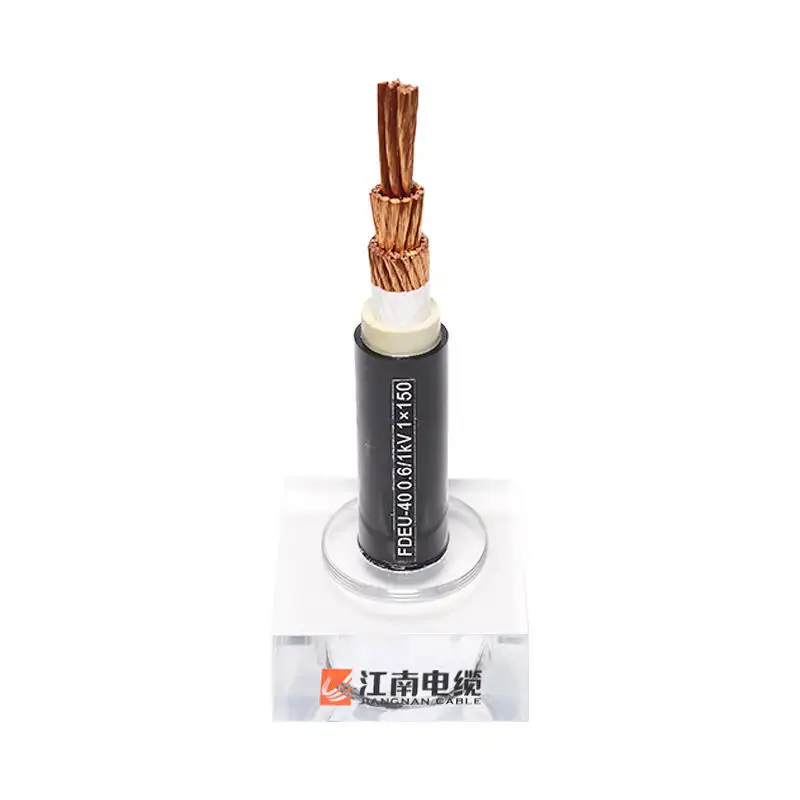

    FDEU-40(-55) Copper conductor ethylene-propylene insulated pu-elastomer sheathed (cold-resistant) reverse-resistant cable for wind energy flexible cable
    FDEG-40(-55) Copper conductor ethylene-propylene insulated silicon rubber sheathed (bitter cold-resistant) (bitter cold-resistant)reverse-resistant cable for wind energy flexible cable
    FDEH-25(40) Copper conductor ethylene-propylene insulated chlorosulfonated polyethyene sheathed (cold-resistant)reverse-resistant cable for wind energy flexible cable
    READ MORE

    Type and name of cable

    Cable category

    Cable name

    Cable model

    EV07EE-H Copper core thermoplastic elastomer insulated elastomer sheathed flexible cable for automotive charging operators Special cable for new
    energy charging
    EV07EEC4E-H Copper core thermoplastic elastomer insulation and elastomer sheathed signal braided screened special flexible cable for charging pile

    Main technical characteristic of cable

    Rated voltager up to including 1.8/3kV Wind energy cable 2
    01
    Permissible Max. Continuous operating temperature of conductor no higher than 90℃, upon short circuit (Max Duration time 5 minutes)2509.
    Rated voltager up to including 1.8/3kV Wind energy cable 3
    02
    Conductor direct-current resistance should according to relevant standard.
    1 (23)
    03
    Cable should be made 3.5kV alternating current resistance withstand voltage or 8.4kV Direct current withstand voltage tests.
    e2ddfca5ef2681790c29002853bc107
    04
    Light transmittance of no-halogen cable not less than 60%.
    2 (15)
    05
    PH of escaping gas of burning no-halogen cable not less than 4.3, conductivity no higher than 10 μ S/mm.

    Product display

    1 (27)
    1 (27)
    2 (18)
    2 (18)
