Rated voltage 8.7/15kv cross-linked polyethylene insulated marine power cable
● Standard
This product implements: IEC 60092-354 standard.
● Conductor
Electrolytic copper, class 5 (flexible), according to IEC 60228.
● Insulation
Cross-linked polyethylene, type HF XLPE 90ºC, Conforms to IEC 60092-353.
● The standard identification of insulated conductors according to HD 308 is the following
1 x Natural
3 x Brown + Black + Grey
Other colors available on request.
Insulated cores are identified by color ribbons
Sheath prints manufacturer's name, model, voltage, specification, length marking, etc.
● Outer sheath
LSHF polyolefin outer sheath type SHF1 according to IEC 60092-360. Black color.
● Armour
Coverage of 100% composed by aluminium-polyester tape and a tinned copper braid.
|
Cable Category |
Cable name |
Cable model |
|
Marine power cable |
XLPE insulation cross-linked polyolefin outer sheath low smoke halogen free flame retardant/fire resistant marine power cable |
CJPJ/SC |
|
XLPE insulation PVC sheath flame retardant marine power cable DA/SA type |
CJV/DA/SA |
|
|
XLPE insulation Cross-linked polyolefin sheath tinned copper wire braids armoured crosslinked polyolefin outer jacket low smoke halogen free flame retardant/fire resistant marine power cable |
CJPJ85/SC |
|
|
XLPE insulation Cross-linked polyolefin sheath galvanized steel wire braids armoured crosslinked polyhydrocarbon outer jacket low smoke halogen free flame retardant/fire resistant marine power cable SC type |
CJPJ95/SC |
|
|
XLPE insulated PVC inner sheath tinned copper wire braids armored PVC outer sheath flame retardant marine power cable DA/SA type |
CJV82/DA/SA |
|
|
XLPE insulated PVC inner sheath galvanized steel wire braids armored PVC outer sheath flame retardant marine power cable DA/SA type |
CJV92/DA/SA |
Product description
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Lowest installation temperature: -15ºC.
Customized products with different thermal properties
Fire resistance of cables in accordance with IEC 60331-21.
Fire non-propagation according to IEC 60332-3-22. LSHF (Low Smoke Halogen Free) according to IEC 60754-1. Low smoke emission according to IEC 61034: light transmittance > 60%. Low corrosive gases emission according to IEC 60754-2.
The minimum bending radius of a 3-core cable is 9 times the outer diameter of the cable.
In Conduit.
Applications
Marine use.

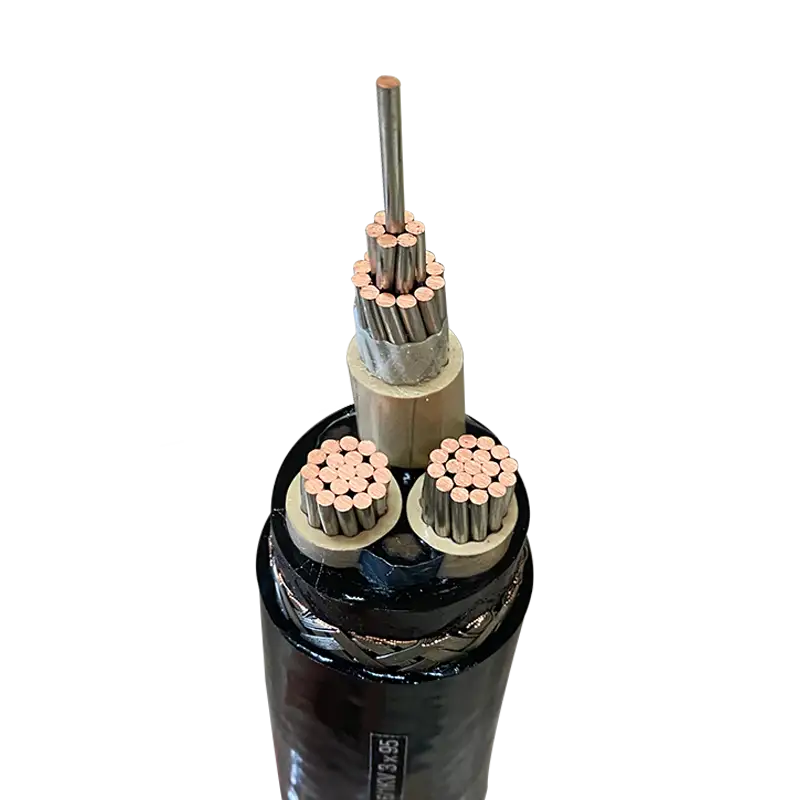

Product display
Cross-linked polyethylene insulated low smoke halogen free medium voltage marine power cables
|
Components |
Code |
Material/Description |
|
Series code |
C |
Shipboard power cable |
|
Conductor |
|
IEC 60228 Class 2 |
|
Conductor screen |
|
Extruded semiconductive layer |
|
Insulation |
J |
XLPE,IEC 60092-360(XLPE) |
|
Insulation screen |
|
Extruded semiconductive layer and having copper tape over it |
|
Laying up |
|
Cores are laid up together and are identified by printed numbers |
|
Inner sheath |
PJ |
Halogen-free flame retardant thermoset compound (SHF2) |
|
PF |
Halogen-free flame retardant thermoplastic compound (SHF1) |
|
|
Armor/screen |
8 |
Tinned copper wire braid (TCWB |
|
9 |
Galvanized steel wire braided (GSWB) |
|
|
Outer sheath |
5 |
Halogen-free flame retardant thermoset compound (SHF2) |
|
6 |
Halogen-free flame retardant thermoplastic compound (SHF1) |
|
|
Outer sheath color |
|
Red |
|
Flammability |
SC |
LSHF Flame retardant,IEC60332-3-22(CATA) |
