Rated voltage 150/250V XLPE insulation marine control cable
● Standard
This product implements: IEC 60092-376 standard.
● Conductor
Electrolytic copper, class 5 (flexible), according to IEC 60228.
● Insulation
Cross-linked polyethylene, type HF XLPE 90ºC, Conforms to IEC 60092-353.
● The standard identification of insulated conductors according to HD 308 is the following
1 x Natural
3 x Brown + Black + Grey
4 x Brown + Black + Grey + Blue
Other colors available on request.
Insulation core with white insulation printed with black numerical markings
Sheath prints manufacturer's name, model, voltage, specification, length marking, etc.
● Outer sheath
LSHF polyolefin outer sheath type SHF1 according to IEC 60092-360. Black color.
● Armour
Coverage of 100% composed by aluminium-polyester tape and a tinned copper braid.
|
Cable category |
Cable name |
Cable model |
|
Marine control cable |
XLPE insulation polyvinyl chloride outer sheath marine control cable |
CKJV/DA/SA/NA |
|
XLPE insulation PVC inner sheath copper wire braids armoured marine control cable |
CKJV80/DA/SA/NA |
|
|
XLPE insulation PVC inner sheath steel wire braids armoured marine control cable |
CKJV90/DA/SA/NA |
|
|
XLPE insulation PVC inner sheath copper wire braids armoured PVC outer sheath marine control cable |
CKJV82/DA/SA/NA |
|
|
XLPE insulation PVC inner sheath steel wire braids armoured PVC outer sheath marine control cable |
CKJV92/DA/SA/NA |
|
|
XLPE insulation cross-linked polyolefin sheathed marine control cable |
CKJPJ/SC/NC |
|
Cable category |
Cable name |
Cable model |
|
Marine control cable |
XLPE insulation cross-linked polyolefin inner sheath copper wire braidsed armoured marine control cable |
CKJPJ80/SC/NC |
|
XLPE insulation cross-linked polyolefin inner sheath steel wire braids armoured marine control cable |
CKJPJ90/SC/NC |
|
|
XLPE insulation cross-linked polyolefin inner sheath copper wire braids armoured cross-linked polyolefin outer sheath marine control cable |
CKJPJ85/SC/NC |
|
|
XLPE insulation cross-linked polyolefin inner sheath steel wire braids armoured cross-linked polyolefin outer sheath marine control cable |
CKJPJ95/SCNC |
|
|
XLPE insulation polyolefin sheathed marine control cable |
CKJPF/SC/NC |
|
|
XLPE insulation polyolefin inner sheath copper wire braids mirror mounted marine control cable |
CKJPF80/SC/NC |
|
|
XLPE insulation polyolefin inner sheath steel wire braidsed cesium marine control cable |
CKJPF90/SC/NC |
|
|
XLPE insulation polyolefin inner sheath copper wire braids armoured polyolefin outer sheath marine control cable |
CKJPF86/SC/NC |
|
|
XLPE insulation polyolefin inner sheath steel wire braidsed armoured polyolefin outer sheath marine control cable |
CKJPF96/SC/NC |
Product description
Highest short-circuit temperature of the cable conductor: 250°C (max. 5 seconds)
Lowest operating temperature of cable conductors: -40°C (fixed and protected installation)
Lowest installation temperature of cable conductors: -15°C.
Customized products with different thermal properties
The fire resistance of the cable is in accordance with IEC 60332-1-2 or IEC 60332-3-22.
Fire resistance of cables in accordance with IEC 60331-21.
Fire non-propagation according to IEC 60332-3-22. LSHF (Low Smoke Halogen Free) according to IEC 60754-1. Low smoke emission according to IEC 61034: light transmittance > 60%. Low corrosive gases emission according to IEC 60754-2.
The minimum bending radius of single-core cables is 12 times the outer diameter of the cable.
The minimum bending radius of a 3-core cable is 9 times the outer diameter of the cable.
Open Air.
In Conduit.
Applications
Marine use.

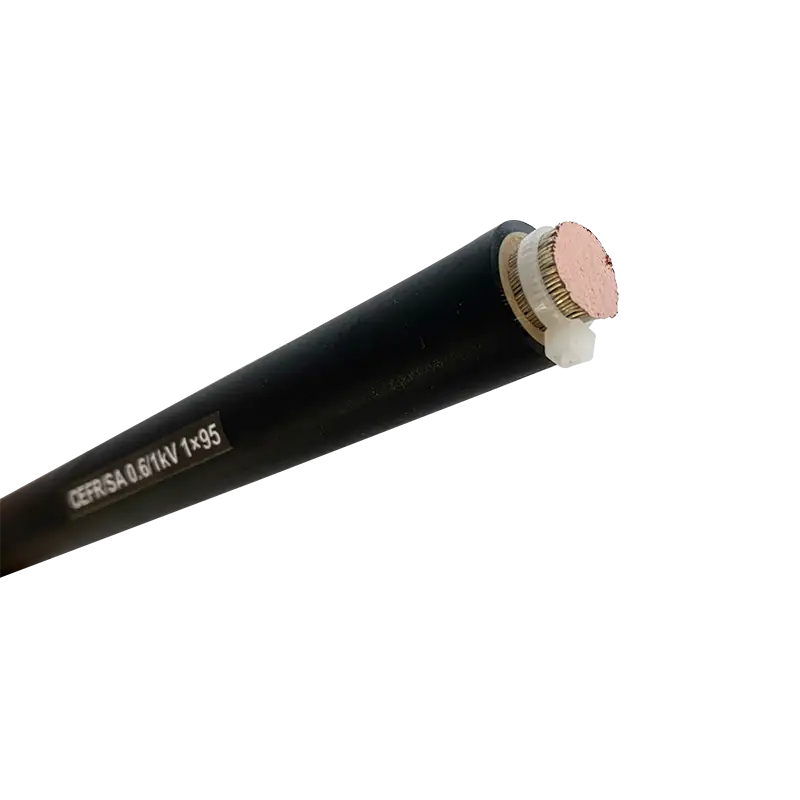

Product display
|
Form |
Cable Name |
Cable Model |
|
Marine |
Cross-linked polyethylene insulated PVC sheathed marine control cable DA SA NA type |
CKJV/DA/SA/NA |
|
Cross-linked polyethylene insulated PVC inner jacket copper wire braided armored marine control cable DA SA NA type |
CKJV80/DA/SA/NA |
|
|
Cross-linked polyethylene insulated PVC sheathed steel wire braided armored marine control cable DA SA NA type |
CKJV90/DA/SA/NA |
|
|
Cross-linked polyethylene insulated PVC inner jacket copper wire braided armored PVC jacket marine control cable DA SA NA type |
CKJV82/DA/SA/NA |
|
|
Cross-linked polyethylene insulated PVC inner jacket steel wire braided armored PVC jacket marine control cable DA SA NA type |
CKJV92/DA/SA/NA |
|
|
Cross-linked polyethylene insulated cross-linked low smoke halogen free jacketed marine control cable SC NC type |
CKJPJ/SC/NC |
|
|
Cross linked polyethylene insulated cross linked low smoke halogen free inner jacket copper wire braided armored marine control cable SC NC type |
CKJPJ80/SC/NC |
|
|
Cross-linked polyethylene insulated cross-linked low smoke halogen free inner jacket steel wire braided armored marine control cable SC NC type |
CKJPJ90/SC/NC |
|
|
Cross linked polyethylene insulated cross linked low smoke and halogen free inner jacket copper wire braided armored cross linked low smoke and halogen free jacket marine control cable SC NC type |
CKJPJ85/SC/NC |
|
|
Cross-linked polyethylene insulated cross-linked low smoke and halogen free inner jacket steel wire braid armored cross-linked low smoke and halogen free jacket marine control cable SC NC type |
CKJPJ95/SC/NC |
|
|
Cross-linked polyethylene insulated non-cross-linked low smoke halogen free jacketed marine control cable SC NC type |
CKJPF/SC/NC |
|
|
Cross linked polyethylene insulated non-cross linked low smoke halogen free copper wire braided armored marine control cable with inner jacket SC NC type |
CKJPF80/SC/NC |
|
|
Cross linked polyethylene insulated non-cross linked low smoke halogen free inner jacket steel wire braided armored marine control cable SC NC type |
CKJPF90/SC/NC |
|
|
Cross linked polyethylene insulated non-cross linked low smoke and halogen free inner jacket copper wire braid armored cross linked low smoke and halogen free jacket marine control cable SC NC type |
CKJPF86/SC/NC |
|
|
Cross linked polyethylene insulated non-cross linked low smoke and halogen free inner jacket steel wire braid armored cross linked low smoke and halogen free jacket marine control cable SC NC type |
CKJPF96/SC/NC |
