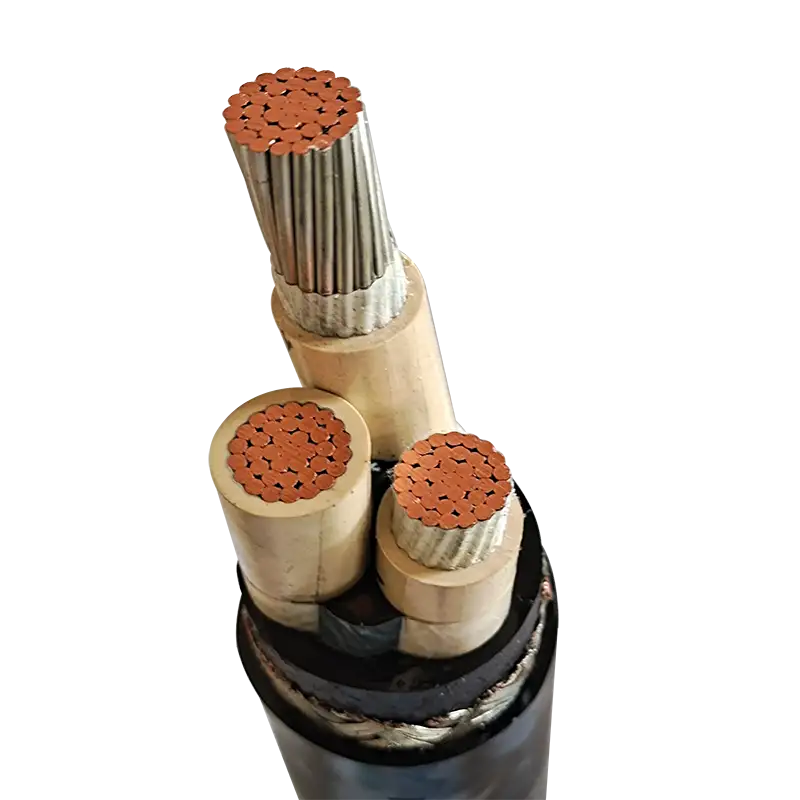

Rated voltage 150/250V XLPE insulation marine communication cable
● Standard
This product implements: IEC 60092-376 standard.
● Insulation
Cross-linked polyethylene, type HF XLPE 90ºC, Conforms to IEC 60092-353.
● The standard identification of insulated conductors according to HD 308 is the following:
1 x Natural
3 x Brown + Black + Grey
4 x Brown + Black + Grey + Blue
Other colors available on request.
Insulation core with white insulation printed with black numerical markings
Sheath prints manufacturer's name, model, voltage, specification, length marking, etc.
● Outer sheath
LSHF polyolefin outer sheath type SHF1 according to IEC 60092-360. Black color.
● Armour
Coverage of 100% composed by aluminium-polyester tape and a tinned copper braid.
|
Cable category |
Cable name |
Cable model |
|
Marine communication cable |
XLPE insulation polyvinyl chloride outer sheath marine communication cable |
CHJV/DA/SA/NA |
|
XLPE insulation green twisted split screen polyvinyl chloride outer sheath marine communication cable |
CHJVP/DA/SA/NA |
|
|
XLPE insulation PVC inner sheath copper wire braidss armored marine communication cable |
CHJV80/DA/SA/NA |
|
|
XLPE insulation twisted split-screen PVC inner sheath copper wire braids armored marine communication cable |
CHJVP80/DA/SA/NA |
|
|
XLPE insulation PVC inner sheath steel wire braids armored marine communication cable |
CHJV90/DA/SA/NA |
|
|
XLPE insulation twisted split screen PVC inner sheath steel wire braids armored marine communication cable |
CHJVP90/DA/S |
| Cable category | Cable name | Cable model |
| Marine communication cable | XLPE insulation copper wire braidss armored PVC outer sheath marine communication cable | CHJ82/DA/SA/NA |
| XLPE insulation PVC inner sheath copper wire braids armored PVC outer sheath marine communication cable | CHJV82/DA/SA/NA | |
| XLPE insulation twisted split screen copper wire braidss and armored PVC outer sheath marine communication cable | CHJP82/DA/SA/NA | |
| XLPE insulation twisted split screen polyethylene inner sheath carcass braidss armored PVC outer sheath marine communication cable | CHJVP82/DA/SA/NA | |
| XLPE insulation polyvinyl chloride inner sheath steel wire braids armored polyvinyl chloride outer sheath marine communication cable | CHJV92/DA/SA/NA | |
| XLPE insulation twisted split screen PVC inner sheath steel wire braids armored PVC outer sheath marine communication cable | CHJVP92/DA/SA/NA | |
| XLPE insulation cross-linked polyolefin sheathed marine communication cable | CHJPJ/SC/NC | |
| XLPE insulation twisted split screen cross-linked polyolefin sheathed marine communication cable | CHJPJP/SC/NC | |
| XLPE insulation cross-linked polyolefin inner sheath copper wire braids armored marine communication cable | CHJPJ80/SC/NC | |
| Crosslinked polyethylene insulated twisted split screen crosslinked polyolefin inner sheath copper wire braids armored marine communication cables | CHJPJP80/SC/NC | |
| XLPE insulation cross-linked polyolefin inner sheath steel wire braids armored marine communication cable | CHJPJ90/SC/NC | |
| XLPE insulation twisted split screen cross-linked polyolefin inner sheath steel wire braids armored marine communication cable | CHJPJP90/SC/NC | |
| XLPE insulation copper wire braidss armored sheet cross-linked polyolefin outer sheath marine communication cable | CHJ85/SC/NC | |
| XLPE insulation twisted split-screen copper wire braidss armored cross-linked polyolefin outer sheath marine communication cable | CHJP85/SC/NC | |
| XLPE insulation cross-linked polyolefin inner sheath copper wire braidss armored cross-linked polyolefin outer sheath marine communication cable | CHJPJ85/SC/NC | |
| Crosslinked polyethylene insulated twisted split screen crosslinked polyolefin inner sheath copper wire braids armored crosslinked polyolefin outer sheath marine communication cable | CHJPJP85/SC/NC | |
| XLPE insulation cross-linked polyolefin inner sheath steel wire braids armored cross-linked polyolefin outer sheath marine communication cable | CHJPJ95/SC/NC | |
| Crosslinked polyethylene absolute grade twisted split screen crosslinked polyolefin inner sheath steel wire braids armored crosslinked polyolefin outer sheath marine communication cable | CHJPJP95/SC/NC | |
| XLPE insulation polyolefin outer sheath marine communication cable | CHJPF/SC/NC | |
| XLPE insulation twisted split screen polyolefin outer sheath marine communication cable | CHJPFP/SC/NC | |
| XLPE insulation polyolefin inner sheath copper wire braidss armored marine communication cable | CHJPF80/SC/NC | |
| XLPE insulation twisted split screen polyolefin inner sheath copper wire braids armored marine communication cable | CHJPFP80/SC/NC | |
| XLPE insulation twisted split screen polyolefin inner sheath steel wire braids armored marine communication cable | CHJPF90/SC/NC | |
| XLPE insulation twisted split screen polyolefin inner sheath steel wire braids armored marine communication cable | CHJPFP90/SC/NC | |
| XLPE insulation copper wire braided armored polyolefin sheathed marine communication cable | CHJ86/SC/NC | |
| XLPE insulation twisted split screen copper wire braided armored polyolefin sheathed marine communication cable | CHJP86/SC/NC | |
| XLPE insulation polyolefin inner sheath copper wire braids armored polyolefin outer sheath marine communication cable | CHJPF86/SC/NC | |
| XLPE insulation twisted split screen polyolefin inner sheath copper wire braids armored polyolefin outer sheath marine communication cable | CHJPFP86/SC/NC | |
| XLPE insulation polyolefin inner sheath steel wire braids armored polyolefin outer sheath marine communication cable | CHJPF96/SC/NC | |
| XLPE insulation twisted split screen polyolefin inner sheath steel wire braidss armored polyolefin outer sheath marine communication cable | CHJPFP96/SC/NC |
Product description
Highest short-circuit temperature of the cable conductor: 250°C (max. 5 seconds)
Lowest operating temperature of cable conductors: -40°C (fixed and protected installation)
Lowest installation temperature of cable conductors: -15°C.
Customized products with different thermal properties
Fire resistance of cables in accordance with IEC 60331-21.
LSHF (Low Smoke Halogen Free) according to IEC 60754-1. Low smoke emission according to IEC 61034: light transmittance > 60%. Low corrosive gases emission according to IEC 60754-2.
Product display
|
Form |
Cable Name |
Cable Model |
|
Marine |
Cross-linked polyethylene insulated PVC sheathed marine communication cable DA SA NA type |
CHJV/DA/SA/NA |
|
Cross-linked polyethylene insulated copper wire braided twisted split screen PVC sheathed marine communication cable DA SA NA type |
CHJVP/DA/SA/NA |
|
|
Cross-linked polyethylene insulated PVC inner jacket copper wire braided armored marine communication cable DA SA NA type |
CHJV80/DA/SA/NA |
|
|
Cross-linked polyethylene insulated copper wire braided twisted split screen PVC jacketed copper wire braided armored marine communication cable DA SA NA type |
CHJVP80/DA/SA/NA |
|
|
Cross-linked polyethylene insulated PVC sheathed steel wire braided armored marine communication cable DA SA NA type |
CHJV90/DA/SA/NA |
|
|
Cross-linked polyethylene insulated copper wire braided twisted split screen PVC jacketed steel wire braided armored marine communication cable DA SA NA type |
CHJVP90/DA/SA/NA |
|
|
Cross-linked polyethylene insulated copper wire braided armored PVC jacketed marine communication cable DA SA NA type |
CHJ82/DA/SA/NA |
|
|
Cross-linked polyethylene insulated PVC inner jacket copper wire braided armored PVC jacket marine communication cable DA SA NA type |
CHJV82/DA/SA/NA |
|
|
Cross-linked polyethylene insulated copper wire braided twisted split screen copper wire braided armored PVC jacketed marine communication cable DA SA NA type |
CHJP82/DA/SA/NA |
|
|
Cross-linked polyethylene insulated copper wire braided twisted split screen PVC inner jacket copper wire braided armored PVC jacket marine communication cable DA SA NA type |
CHJVP82/DA/SA/NA |
|
|
Cross-linked polyethylene insulated steel wire braided armored PVC jacketed marine communication cable DA SA NA type |
CHJ92/DA/SA/NA |
|
|
Cross-linked polyethylene insulated copper wire braided twisted split screen wire braided armored PVC jacketed marine communication cable DA SA NA type |
CHJP92/DA/SA/NA |
|
|
Cross-linked polyethylene insulated PVC sheathed steel wire braided armored PVC jacketed marine communication cable DA SA NA type |
CHJV92/DA/SA/NA |
|
|
Cross-linked polyethylene insulated copper wire braided twisted split screen PVC inner jacket steel wire braided armored PVC jacket marine communication cable DA SA NA type |
CHJVP92/DA/SA/NA |
|
|
Cross-linked polyethylene insulated cross-linked low smoke halogen free jacket marine communication cable SC NC type |
CHJPJ/SC/NC |
|
|
Crosslinked polyethylene insulated copper wire braided twisted pair split screen crosslinked low smoke halogen free jacket marine communication cable SC NC type |
CHJPJP/SC/NC |
|
|
Crosslinked polyethylene insulated crosslinked low smoke halogen free inner jacket copper wire braided armored marine communication cable SC NC type |
CHJPJ80/SC/NC |
|
|
Crosslinked polyethylene insulated copper wire braided twisted pair split screen crosslinked low smoke halogen free inner jacket copper wire braided armored marine communication cable SC NC type |
CHJPJP80/SC/NC |
|
|
Crosslinked polyethylene insulated crosslinked low smoke halogen free inner jacket steel wire braided armored marine communication cable SC NC type |
CHJPJ90/SC/NC |
|
|
Crosslinked polyethylene insulated copper wire braided twisted pair split screen crosslinked low smoke halogen free inner jacket steel wire braided armored marine communication cable SC NC type |
CHJPJP90/SC/NC |
|
|
Crosslinked polyethylene insulated copper wire braided armored crosslinked low smoke halogen free jacket marine communication cable SC NC type |
CHJ85/SC/NC |
