Photovoltaic Special Dc 1.8-3kv Cable Red Black Solar Photovoltaic Pv Power Cable
5.0
Samples:
$2.0/meter | Min. order : 1 meter
Shipping:
Ocean freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-500(meters):20(days),>500(meters):To be negotiated(days)
Model Number:
PV1-F
Brand Name:
WUCAI
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
cross-sectional area of conductor
1.5~35(mm²)
Ambient temperature
-40℃ ~+90℃
Standards
2PfG 1169/08.2007
Colors
Red Black or custom
Certificate
TUV
Rated voltage
AC Uo/U0.6/1kV, DC 1.8kV
Conductor Type
stranded
Core
1
Conductor
Class 5 tinned copper conductor
Jacket
XLPO
Conductor Material
Tinned Copper
Application
Industrial, Photovoltaic power generation system
Type
LOW VOLTAGE
Insulation Material
XLPO
Place of Origin
China
Recommend Products
Product Paramenters
Product Name | XLPO insulated LSZH sheathed solar photovoltaic cable |
Model | PV1-F |
Conductor | Class 5 tinned copper conductor |
No. of Cores | 1 |
Conductor Type | stranded |
Insulation | 125℃ cross-linked polyolefin |
Jacket(Sheath) | 125℃ cross-linked polyolefin |
Standards | 2PfG 1169/08.2007 |
DC | 1.8kV |
AC | 0.6/1kV |
Nominal cross-sectional area of conductor(mm²) | 1.5~35(mm²) |
Application | Photovoltaic power generation system |
Colors | Red Black or custom |
Ambient temperature | -40℃ ~+90℃ |
Max. Temperature at conductor | +120 ℃ |
Products Description
photovoltaic special dc 1.8-3kv cable red black solar photovoltaic pv power cable 丨We can also custom twin core solar cable.
Standard:
The 0.6/1KV solar cable is manufactured according to the 2 PfG 1169/08.2007 EN50618:2014 "The Requirements of Photovoltaic Cable” standard.Applications：
2 PfG 1169/08.2007 EN50618:2014 covers the single core flexible cables(wires)used in DC sides of photovoltaic system which max. permissible DC voltage is 1.8kV(line to line, non ground system). The product is applicable to the environment which safety degree is under Class ll , and it can be parallel used.
Our photovoltaic cable series has passed the German TÜV and China CQC certification. The certificate covers 1.5mm²-35mm². The product is tinned copper conductor, cross-linked polyolefin insulation, and LSZH sheath.
It has the following advantages:
Ozone resistant and acid-resistant;
Good insulation resistance;
Good performance of cold bend and cold winding;
Low-smoke;
Environmentally friendly, conforms to RoHS compliant.
The service life is more than 25 years.

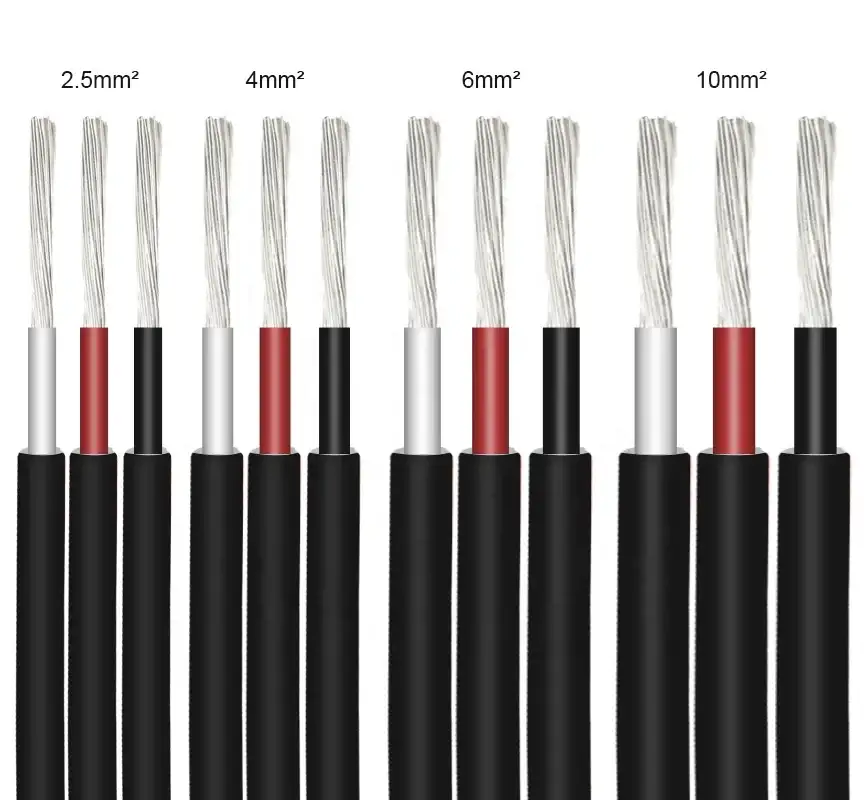

Details Images
Manufacturing Technique
cross sectional area mm2 | (tinned copper) conductor type | Calculated conductor overall diameter(mm) | Calculated cable overall diameter (mm) | Calculated cable weight(kg/km) | Max.DC resistance at 20℃ |
1.5 | 5 | 1.6 | 5.1 | 41 | 13.7 |
2.5 | 5 | 2.0 | 5.5 | 53 | 8.21 |
4 | 5 | 2.6 | 6.2 | 73 | 5.09 |
6 | 5 | 3.2 | 6.8 | 96 | 3.39 |
10 | 5 | 4.2 | 7.9 | 149 | 1.95 |
16 | 5 | 5.5 | 9.2 | 208 | 1.24 |
25 | 5 | 7.2 | 11.2 | 310 | 0.795 |
35 | 5 | 8.2 | 12.2 | 411 | 0.565 |
