Jiangnan Cable Wires and Cables Manufacturer for Sale
Product Overview
Jiangnan Cable Wires and Cables Manufacturer for Sale offers high-quality welding cables that play a crucial role in transmitting current and signals during welding operations. The cables are made of fine copper wire twisted for good electrical conductivity and flexibility, with insulation and outer sheath for protection and durability.
Product Features
The welding cables are made of high-quality materials such as rubber and plastic for insulation and sheathing. They have excellent insulation properties, high temperature resistance, and wear resistance to ensure safety and reliability during welding operations. The cables provide stable electric energy for the welding process.
Product Value
Jiangnan Cable Wires and Cables Manufacturer for Sale provides value through their high-quality welding cables that offer safety, reliability, and durability in welding operations. The cables are designed to withstand harsh working environments and provide stable electric energy for efficient welding processes.
Product Advantages
The welding cables from Jiangnan Cable Wires and Cables Manufacturer for Sale have advantages such as excellent electrical conductivity, flexibility, insulation, high temperature resistance, wear resistance, and corrosion resistance. The cables enhance the mechanical strength and reliability of the welding process.
Application Scenarios
The welding cables are suitable for various welding operations where a reliable and durable connection component is needed to transmit current and signals between welding power source, welding gun, and welding parts. The cables can be used in industrial environments with high temperatures, wear, and corrosion, providing stable electric energy for efficient welding processes.
| T ype | Name |
| YQ,YQW | Light flexible rubber cable |
| YZ 60245 IEC 53(YZ) | Medium flexible rubber cable General flexible rubber cable |
| YZW 60245 IEC 57(YZW) | CR or other equivalent synthetic elastomer rubber cable |
| YC | Heavy flexible rubber cable |
| YCW 60245 IEC 66(YCW) | Heavy CR or other equivalent synthetic elastomer rubber cable |
| YZB、YZWB | Medium flexible rubber-sheathed flat cable |
| 60245 IEC 81(YH) | Rubber-sheathed welding cable |
| 60245 IEC 82(YHF) | CR or other equivalent synthetic elastomer rubber-sheathed welding cable |
Good reasons for working with us
● Max. Admissible operating temperature of the conductor: 60℃
● Permissible long-term operating temperature: lowest working temperature is -35℃60245IEC57(YZW)、60245IEC66(YCW)、60245IEC 82(YHF)
● Cables can be used at places contaminated by mineral oil and fuel oil. the bending radius of cables
● Ds25mm:>4D
● D>25mm: ≥6D
● D-Diameter of the cable
● Fire resistance of cables in accordance with IEC 60331-21.
● Fire non-propagation according to IEC 60332-3-22. LSHF (Low Smoke Halogen Free) according to IEC 60754-1. Low smoke emission according to IEC 61034: light transmittance > 60%. Low corrosive gases emission according to IEC 60754-2.

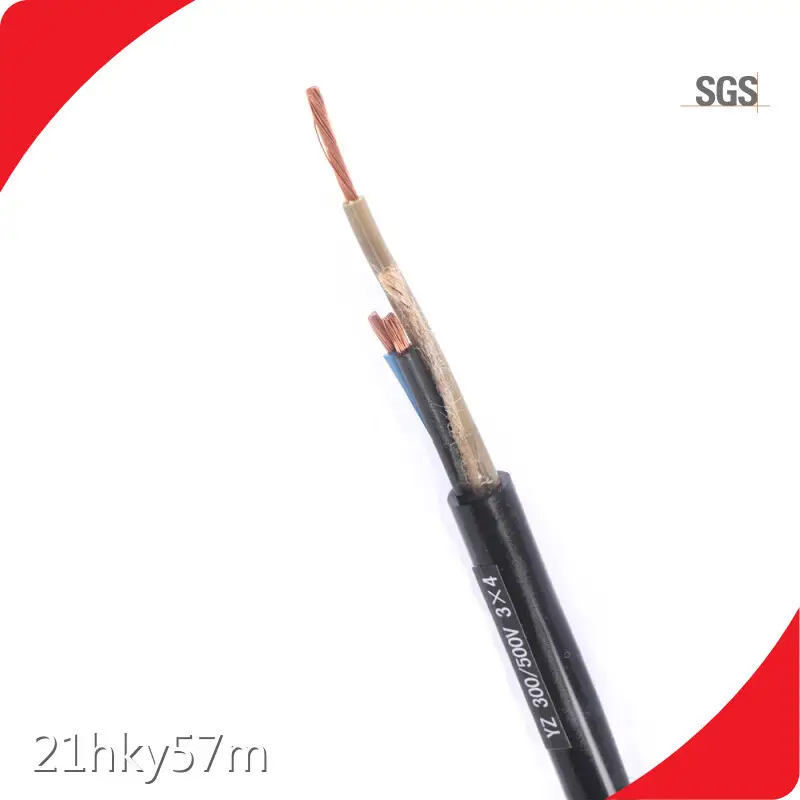

Product display
Product certificate
| Nom cross sectional area mm² |
Insulation thickness mm |
Sheath thickness mm |
Average diameter | Calculated weight Kg/km |
Max.D.C.resistance(20℃) Ω/km |
|||
| Min. mm |
Max. mm |
YQ | YQW | Plain | Metal-coated | |||
| 2×0.3 | 0.5 | 0.7 | 4.6 | 6.6 | 41 | 43 | 69.2 | 71.2 |
| 2×0.5 | 0.5 | 0.7 | 5.0 | 7.2 | 50 | 52 | 39.0 | 40.1 |
| 3×0.3 | 0.5 | 0.7 | 4.8 | 7.0 | 50 | 52 | 69.2 | 71.2 |
| 3×0.5 | 0.5 | 0.7 | 5.2 | 7.6 | 65 | 67 | 39.0 | 40.1 |
| 4×0.3 | 0.5 | 0.8 | 5.0 | 7.5 | 62 | 65 | 69.2 | 71.2 |
| 4×0.5 | 0.5 | 0.8 | 5.6 | 8.5 | 77 | 80 | 39.0 | 40.1 |
| 5×0.3 | 0.5 | 0.8 | 5.3 | 8.0 | 72 | 75 | 69.2 | 71.2 |
| 5×0.5 | 0.5 | 0.8 | 5.8 | 8.9 | 94 | 97 | 39.0 | 40.1 |
