Product Overview

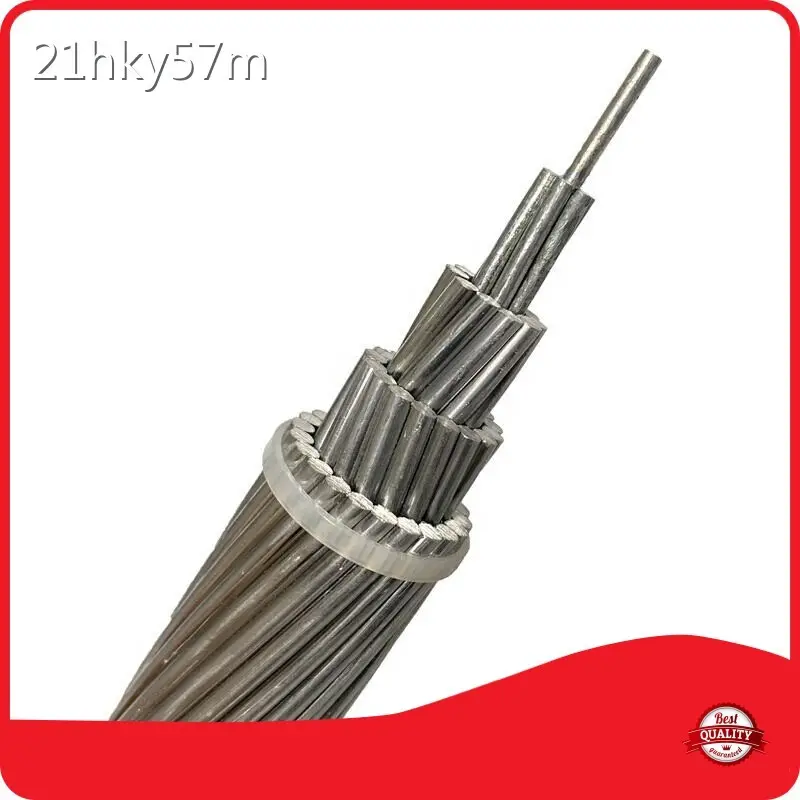

The Jiangnan Cable High Voltage Aluminum Cable Manufacturer specializes in producing aluminum alloy stranded wire, which is widely used in the power transmission field. It is known for its good electrical conductivity, high mechanical tension, and flexibility.

Jiangnan Cable High Voltage Aluminum Cable Manufacturer 2

Jiangnan Cable High Voltage Aluminum Cable Manufacturer 3

Product Features

Aluminum alloy stranded wire is lightweight and has good corrosion resistance, making it ideal for overhead transmission lines. It has high heat resistance, ensuring reliable power transmission in high-temperature environments.

Product Value

The aluminum alloy stranded wire reduces engineering costs, extends service life, and efficiently transports electric energy over long distances. It is essential for overhead transmission lines and is also widely used in the new energy field.

Jiangnan Cable High Voltage Aluminum Cable Manufacturer 4

Jiangnan Cable High Voltage Aluminum Cable Manufacturer 5

Product Advantages

The aluminum alloy stranded wire has advantages in weight reduction, corrosion resistance, heat resistance, and efficient power transmission. It meets strict production standards to ensure quality and performance.

Application Scenarios

The aluminum alloy stranded wire is used in overhead transmission lines, new energy fields like wind and solar power generation, and industrial applications. Proper selection, installation, and maintenance are necessary to ensure safe and stable power system operation.

Jiangnan Cable High Voltage Aluminum Cable Manufacturer 6

No.	Type	Name	Cross- section area	Standard
1	JL	AAC	10~1000	GB/T 1179-2017
2	JLHA2、JLHA1	AAAC	16~1000
3	JL/G1A、JL/G1B、 JL/G2A、JL/G2B、 JL/G3A	ACSR	16~1000
4	JL/G1AF、JL/G2AF、 JL/G3AF	ACSR	16~1000
5	JLHA2/G1A、 JLHA2/G1B、 JLHA2/G3A	Aluminium alloy Conductor steel-reinforced	16~1000
6	JLHA1/G1A、 JLHA1/G1B、 JLHA1/G3A	Aluminium alloy Conductor steel-reinforced	16~1000
7	JL/LHA2、JL/LHA1	Aluminium Conductor aluminium alloy reinforced	16~1000
8	JL/LB20A	Aluminium Conductor aluminium coated steel-reinforced	16~1000
9	JLHA20A/LB1A、 JLHA2/LB20A	Aluminium alloy Conductor aluminium coated steel-reinforced	16~1000
10	JG1A、JG1B、 JG2A、JG3A	Steel stranded wire	4~63
11	JLB20A、JLB20B	Aluminium coated steel stranded wire	4~200

Cable Category	Cable name	Cable model
Marine control cable	Ethylene propylene insulation PVC inner sheath copper wire braided armored marine control cable	CKEV80/DA/SA/NA
	Ethylene propylene insulation PVC inner sheath blackberry steel wire braided armored marine control cable	CKEV90/DA/SA/NA
	Ethylene propylene insulation PVC inner sheath copper wire braid armored PVC outer sheath marine control cable	CKEV82/DA/SA/NA
	Ethylene-Propylene insulation PVC inner sheath steel wire braid armored PVC outer sheath marine control cable	CKEV92/DA/SA/NA
	Ethylene propylene insulation cross-linked polyolefin sheathed marine control cable	CKEPJ/SC/NC
	Ethylene propylene insulation cross-linked polyolefin inner sheath copper wire braid armored marine control cable	CKEPJ80/SC/NC
	Ethylene Propylene insulation Cross-linked Polyolefin Inner Sheath Steel Wire Braided Armor Marine Control Cable	CKEPJ90/SC/NC
	Ethylene propylene insulation cross-linked polyolefin inner sheath copper wire braid armored cross-linked polyolefin outer sheath marine control cable	CKEPJ85/SC/NC
	Ethylene propylene insulation cross-linked polyolefin inner sheath steel wire braid armored cross-linked polyolefin outer sheath marine control cable	CKEPJ95/SCNC
	Ethylene Propylene insulation Polyolefin Sheathed Marine Control Cable	CKEPF/SC/NC
	Ethylene propylene insulation polyolefin inner sheath copper wire braid armored marine control cable	CKEPF80/SC/NC
	Ethylene propylene insulation polyolefin inner sheath steel wire braid armored marine control cable	CKEPF90/SC/NC
	Ethylene propylene insulation polyolefin inner sheath copper wire braid armored polyolefin outer sheath tire control cable	CKEPF86/SC/NC
	Ethylene propylene insulation polyolefin inner sheath steel wire braid armored polyolefin outer sheath marine control cable	CKEPF96/SC/NC

Product description

Jiangnan Cable High Voltage Aluminum Cable Manufacturer 7

Operating characteristics 1

XLPE Insulated Electrical Cable for rated power frequency voltage Uo/U:3.6/6kV~26/35kV
Max. short-circuit temperature of conductor shall not exceed 250°C (5sMax.Duration)
The bending radius of single-core cable shall not less than 20 times of the cable diameter
The bending radius of three-core cable shall not less than 15 times of the cable diameter

Jiangnan Cable High Voltage Aluminum Cable Manufacturer 8

Operating characteristics 2

XLPE Insulated Electrical Cable for rated power frequency voltage Uo/U:0.6/1kV
Max.permissible continuous operating temperature of conductor:90℃
Max.short-circuit temperature of conductor shall not exceed 250℃(4s Max.Duration)
The ambient temperature under installation shall not below 0℃
The bending radius of single-core cable shall not less than 20 times of the cable diameter. The bending raius of three-core cable shall not less than 12 times of the cable diameter.

Fire performance

The product is suitable for using in power distribution networks or fixed installations for industrial equipment with rated voltage up to and including 26/35kV.

Mechanical properties

The minimum bending radius of a 3-core cable is 9 times the outer diameter of the cable.

Insulation

Cross-linked polyethylene, type HF XLPE 90ºC, Conforms to IEC 60092-353.

Outer sheath

LSHF polyvinyl outer sheath type SHF1 according to IEC 60092-360. Black color.

Voltage designation

● The rated voltage of the cable for a given application shall be suitable for the operating conditions in the system in which the cable is used,and is expressed in the form of Uo/U(Um) kV Where:

Uo —The rated power-frequency voltage between conductor and screen or metallic-sheath, for which the cable designed;

U —The rated power-frequency voltage between conductors, for which the cable designed;

Um —The maximum value of the "highest system voltage" for which the equipment may be operated

Type	No.of cores	Nominal cross sectional area mm
Aluminum alloy conductor	No.of cores	Nominal cross sectional area mm
TC90(-40)YJLHV YJLHV22 AC90(-40)/YJLHS ACWU90(-40)/YJLHS2 YJLHV32	1	4-800
	2	4-500
	3	4-500
	4	4-500
	3+1	4-500
	5	4-500
	4+1	4-500
	3+2	4-500

The armoured single-core cables are used for D.C.system only.As for A.C.system.

non-magnetic armoured material should be used,or magnetic isolation measures should be applied.

Product display

钢丝-钢带铠装-对比图

14页--3

14页--4

14页--5

14页--6

15页--1

15页--3

15页--4

16页--1

16页--2

13页--1

13页--2

13页--3

13页--4

14页--1

14页--2

6 (4)

5 (7)

4 (7)

3 (14)

2 (23)

1 (32)

Power cable certificate display

ISO45001 (2)

ISO14001

8018 12782

Specif- ication	Steel rate %	Nominal cross- sectional area mm²			No.of wire n		Diameter of Single wire		Diameter mm		Calculated weight kg/km	Rated tensile force kN (JL/G1A)	D.C.resistance of Conductor at 20℃ Ω/km
Specif- ication	Steel rate %	Al	St	Total	Al	St	Al	St	Steel core	Condu- ctor	Calculated weight kg/km	Rated tensile force kN (JL/G1A)	D.C.resistance of Conductor at 20℃ Ω/km
10/2	16.7	10.6	1.78	12.4	6	1	1.50	1.50	1.50	4.50	42.8	4.14	2.7062
16/3	16.7	16.1	2.69	18.8	6	1	1.85	1.85	1.85	5.55	65.2	6.13	1.7791
25/4	16.7	24.9	4.15	29.1	6	1	2.30	2.30	2.30	2.30	100.7	9.10	1.1510
35/6	16.7	34.9	5.81	40.7	6	1	2.72	2.72	2.72	8.16	140.9	12.55	0.8230
50/8	16.7	48.3	8.64	56.30	6	1	3.20	3.20	3.20	9.60	194.8	16.81	0.5946
50/30	58.3	50.7	29.6	80.3	12	7	2.32	2.32	6.96	11.6	371.3	42.61	0.5693
70/10	16.7	68.0	11.3	79.3	6	1	3.80	3.80	3.80	11.4	275.0	23.36	0.4217
70/40	58.3	69.7	40.7	110	12	7	2.72	2.72	8.16	13.6	510.4	58.22	0.4141
95/15	16.2	94.4	15.3	110	26	7	2.15	1.67	5.01	13.6	380.5	34.93	0.3059
95/20	19.8	95.1	18.8	114	7	7	4.16	1.85	5.55	13.9	408.5	37.24	0.3020
95/55	58.3	96.5	56.3	153	12	7	3.20	3.20	9.60	16.0	706.4	77.85	0.2992
120/7	5.6	119	6.6	125	18	1	2.90	2.90	2.90	14.5	378.9	27.74	0.2422
120/20	16.3	116	18.8	134	26	7	2.38	1.85	5.55	15.1	466.4	42.26	0.2496
120/25	19.8	122	24.2	147	7	7	4.72	2.10	6.30	15.7	526.0	47.96	0.2346
120/70	58.3	122	71.3	193	12	7	3.60	3.60	10.8	18.0	894.0	97.92	0.2364
150/8	5.6	145	8.04	153	18	1	3.20	3.20	3.20	16.0	461.3	32.73	0.1990
150/20	12.9	146	18.8	164	24	7	2.78	1.85	5.55	16.7	549.0	46.78	0.1981
150/25	16.3	149	24.2	173	26	7	2.70	2.10	6.30	17.1	600.5	53.67	0.1940
150/35	23.3	147	34.4	182	30	7	2.50	2.50	7.50	17.5	675.4	64.94	0.1962
185/10	5.6	183	10.2	193	18	1	3.60	3.60	3.60	18.0	583.8	40.51	0.1572
185/25	13.0	187	24.2	211	24	7	3.15	2.10	6.30	18.9	705.5	59.23	0.1543
185/30	16.3	181	29.6	211	26	7	2.98	2.32	6.96	18.9	732.0	64.56	0.1592
185/45	23.1	185	43.1	228	30	7	2.80	2.80	8.40	19.6	847.2	80.54	0.1564
210/10	5.6	204	11.3	215	18	1	3.80	3.80	3.80	19.0	650.5	45.14	0.1411
210/25	13.0	209	27.1	236	24	7	3.33	2.22	6.66	20.0	788.4	66.19	0.1380
210/35	16.2	212	34.4	246	26	7	3.22	2.50	7.50	20.4	853.1	74.11	0.1364

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
