Jiangnan Cable 10mm Xlpe Cable 10mm Xlpe Cablewith Good Price
Product Overview

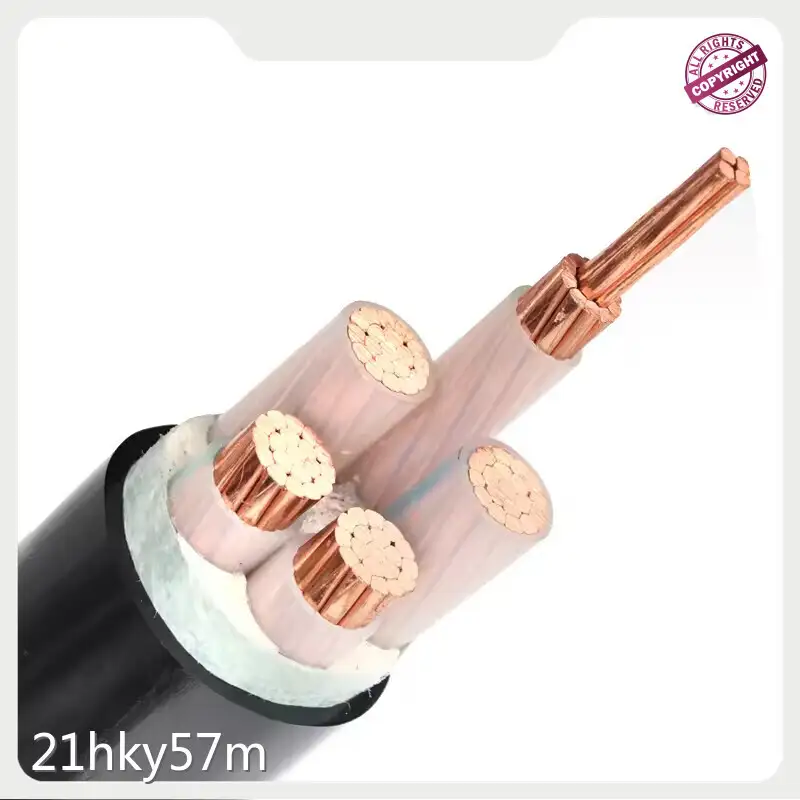

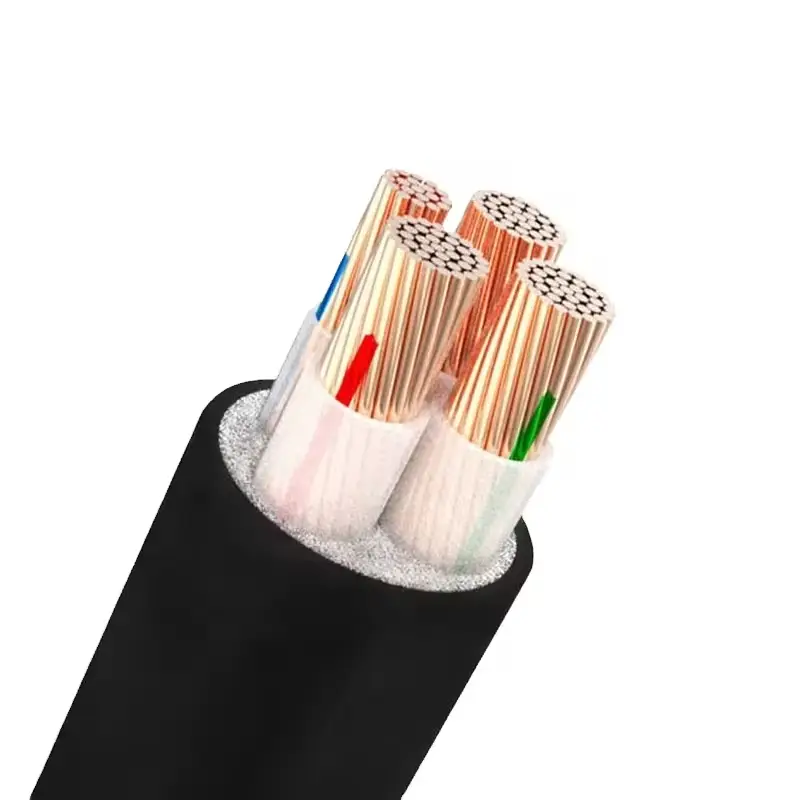

Jiangnan Cable 10mm Xlpe Cable is available in four types - YJV, YJLV, YJY, and YJLY, with different conductor and sheath materials for various applications.
Product Features
The cable is designed for indoor use in tunnels or cable trenches and is not suitable for bearing external mechanical forces. It is available in both copper and aluminum conductor with XLPE insulation and PVC or PE sheathing.
Product Value
This cable offers good value for money, providing high-quality materials and construction at an affordable price.
Product Advantages
The cable's XLPE insulation and PVC or PE sheathing provide excellent protection and durability, making it suitable for a wide range of applications.
Application Scenarios
The Jiangnan Cable 10mm Xlpe Cable is suitable for use in tunnels, cable trenches, and indoor installations where it will not be exposed to external mechanical forces.
|
Nominal Cross Sectional area of conductor mm² |
Max.D.C resistance of conductor at 20℃ (Ω/km) |
|||
|
Copper |
Aluminum |
|||
|
1 |
18.1 |
- |
||
|
1.5 |
12.1 |
- |
||
|
2.5 |
7.41 |
- |
||
|
4 |
4.61 |
- |
||
|
6 |
3.08 |
- |
||
|
10 |
1.83 |
3.08 |
||
|
16 |
1.15 |
1.91 |
||
|
25 |
0.727 |
1.20 |
||
|
35 |
0.524 |
0.868 |
||
|
50 |
0.387 |
0.641 |
||
|
70 |
0.268 |
0.443 |
||
|
95 |
0.193 |
0.320 |
||
|
120 |
0.153 |
0.253 |
||
|
150 |
0.124 |
0.206 |
||
|
185 |
0.0991 |
0.164 |
||
|
240 |
0.0754 |
0.125 |
||
|
300 |
0.0601 |
0.100 |
||
|
400 |
0.0470 |
0.0778 |
||
|
500 |
0.0366 |
0.0605 |
||
|
630 |
0.0283 |
0.0469 |
||
|
800 |
0.0221 |
0.0367 |
||
|
Power frequency |
Test voltage 3.5kV/5min |
|||
