Factory Pricehigh Voltage Cable
Product Overview

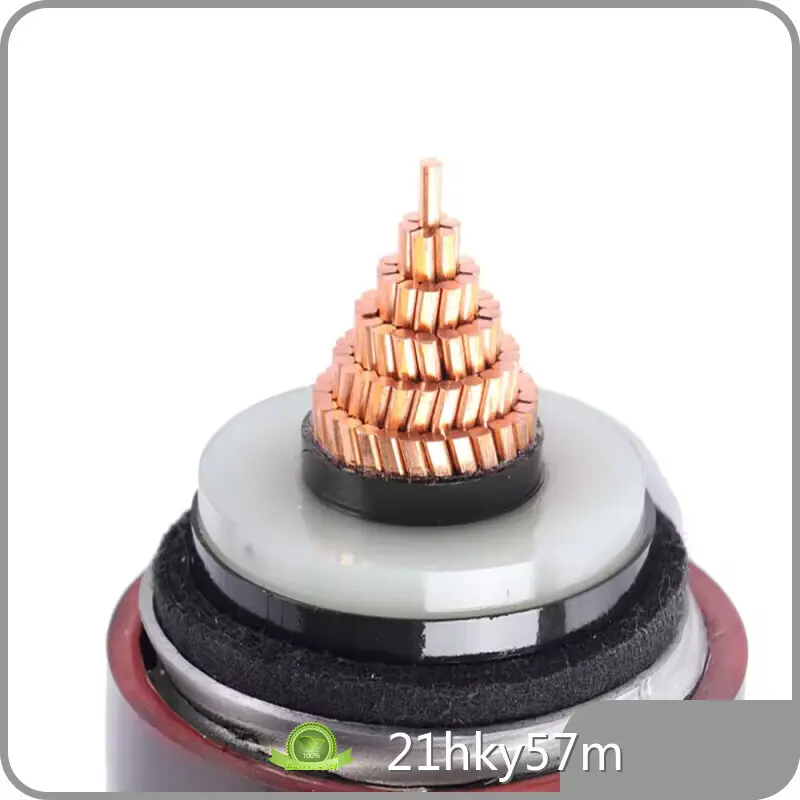

The product is a high voltage cable available in various specifications, including different types of conductors, insulation materials, sheath materials, and water-blocking features.
Product Features
- The cables are available with either copper or aluminum conductors.
- They are insulated with XLPE and have either corrugated aluminum or PE outer sheaths.
- Some models also feature longitudinal water-blocking capabilities.
Product Value
The high voltage cables offer high-quality materials, advanced features, and customizable options at a competitive factory price.
Product Advantages
- The cables provide reliable and efficient power transmission for high voltage applications.
- They are durable and resistant to water ingress, making them suitable for various environments and conditions.
Application Scenarios
These high voltage cables are suitable for use in a wide range of applications, including power distribution, industrial facilities, construction sites, and outdoor installations. They are designed to meet the demands of high voltage power transmission and distribution systems.

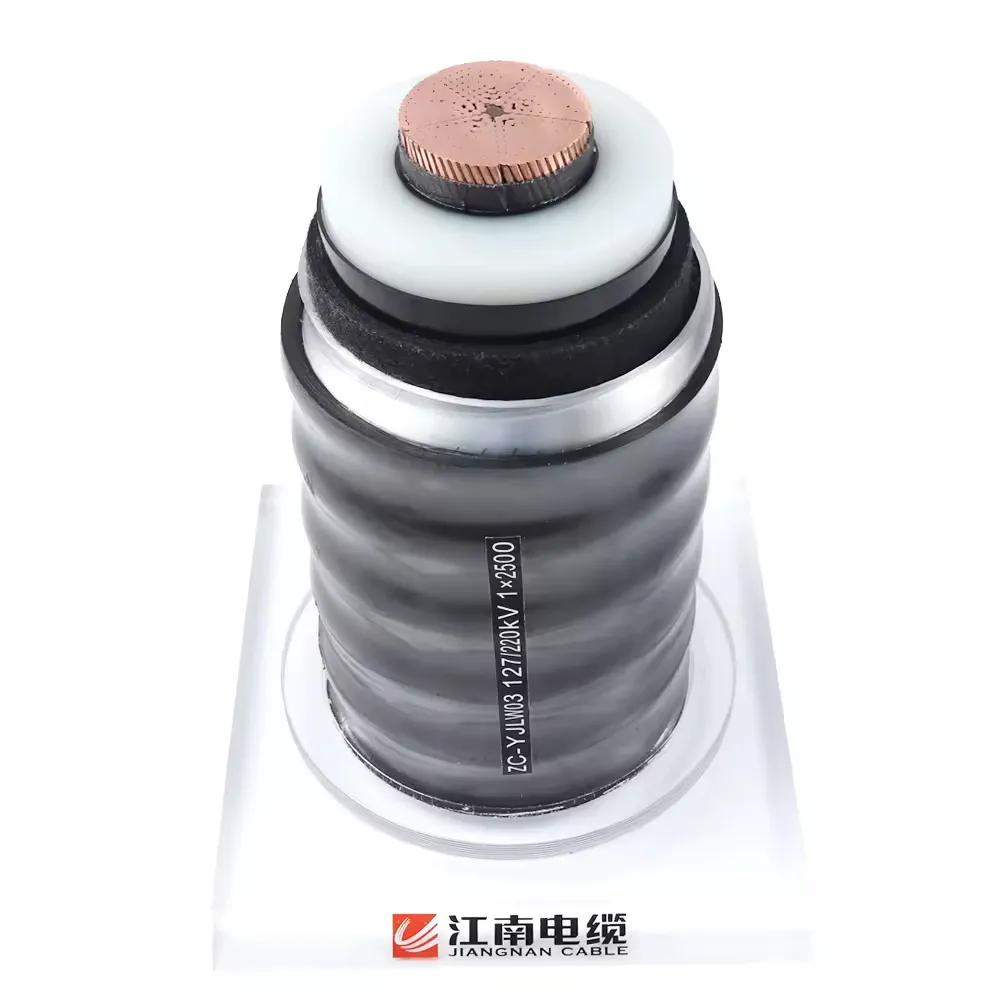

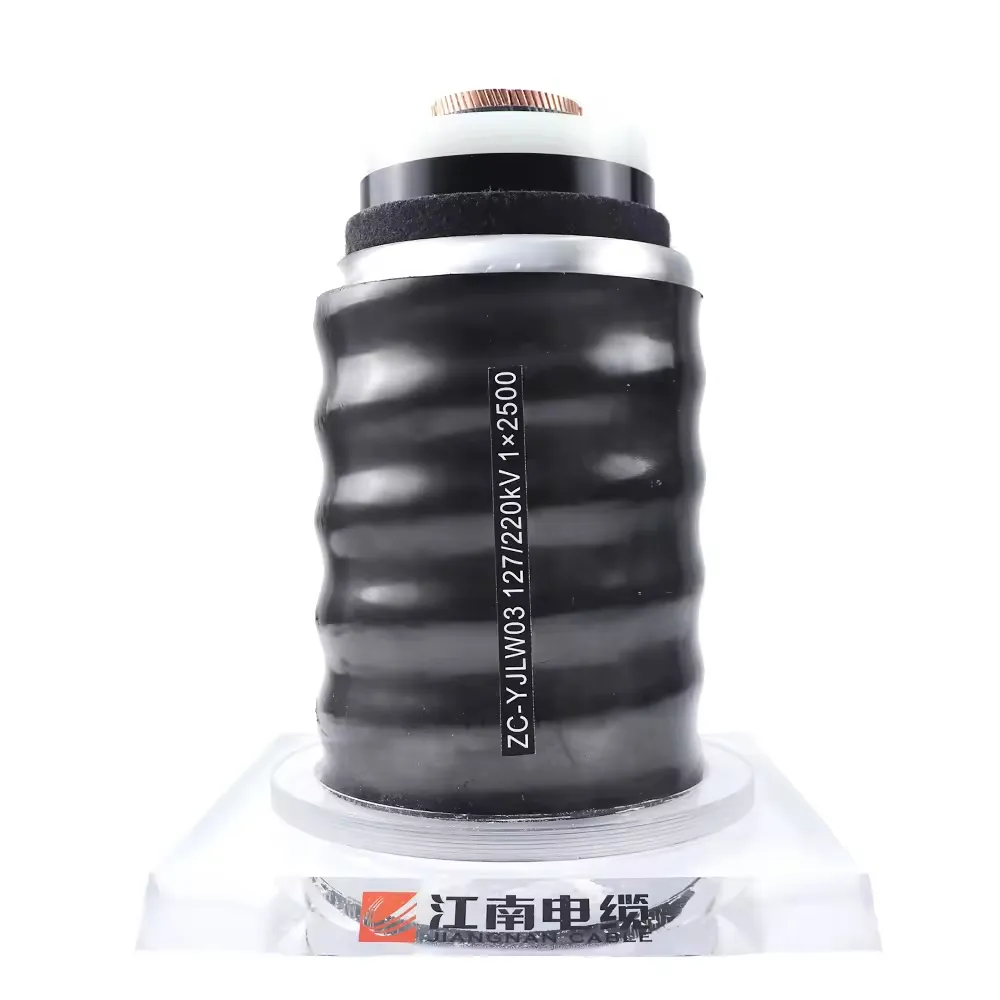

XLPE insulation corrugated aluminum sheath non-metallic outer sheath for rated voltage of 127/220kV
Structure Size and Performance Parameters
|
Conductor |
Nominal Insulation |
Aluminium sheath thickness |
Non-metallic |
||
|
Nominal cross- |
Shape |
Approx.diameter mm |
|||
|
400 |
Circular |
23.1 |
27.0 |
2.4 |
5.0 |
|
500 |
26.4 |
27.0 |
2.4 |
5.0 |
|
|
630 |
30.1 |
26.0 |
2.4 |
5.0 |
|
|
800 |
Millikan |
35.2 |
25.0 |
2.4 |
5.0 |
|
1000 |
39.5 |
24.0 |
2.0 |
5.0 |
|
|
1200 |
42.6 |
24.0 |
2.0 |
5.0 |
|
|
1400 |
46.0 |
24.0 |
2.6 |
5.0 |
|
|
1600 |
49.2 |
24.0 |
2.6 |
5.0 |
|
|
2000 |
54.4 |
24.0 |
2.8 |
5.0 |
|
|
2500 |
61.0 |
24.0 |
2.8 |
5.0 |
|
