Product Overview
The product is a custom cable for welding operations, serving as a crucial connection component between welding power source, welding gun, and welding parts.
Product Features
The cable is made up of a conductor consisting of multiple strands of fine copper wire twisted for electrical conductivity and flexibility, an insulating layer for insulation and protection, and an outer sheath for mechanical strength and corrosion resistance.
Product Value
The cable provides stable electric energy for the welding process, with high-quality insulation materials to prevent dangerous situations such as current leakage and short circuit, and a durable outer sheath for long-term use in harsh working environments.
Product Advantages
The cable effectively reduces resistance for smooth current transmission, has high temperature resistance and wear resistance, and is designed for reliable insulation even under harsh conditions.
Application Scenarios
The cable is designed for use in welding operations, where it plays a crucial role in transmitting current and signal between welding components, ensuring smooth and stable electric energy for the welding process.
| T ype | Name |
| YQ,YQW | Light flexible rubber cable |
| YZ 60245 IEC 53(YZ) | Medium flexible rubber cable General flexible rubber cable |
| YZW 60245 IEC 57(YZW) | CR or other equivalent synthetic elastomer rubber cable |
| YC | Heavy flexible rubber cable |
| YCW 60245 IEC 66(YCW) | Heavy CR or other equivalent synthetic elastomer rubber cable |
| YZB、YZWB | Medium flexible rubber-sheathed flat cable |
| 60245 IEC 81(YH) | Rubber-sheathed welding cable |
| 60245 IEC 82(YHF) | CR or other equivalent synthetic elastomer rubber-sheathed welding cable |
Good reasons for working with us
● Max. Admissible operating temperature of the conductor: 60℃
● Permissible long-term operating temperature: lowest working temperature is -35℃60245IEC57(YZW)、60245IEC66(YCW)、60245IEC 82(YHF)
● Cables can be used at places contaminated by mineral oil and fuel oil. the bending radius of cables
● Ds25mm:>4D
● D>25mm: ≥6D
● D-Diameter of the cable
● Fire resistance of cables in accordance with IEC 60331-21.
● Fire non-propagation according to IEC 60332-3-22. LSHF (Low Smoke Halogen Free) according to IEC 60754-1. Low smoke emission according to IEC 61034: light transmittance > 60%. Low corrosive gases emission according to IEC 60754-2.

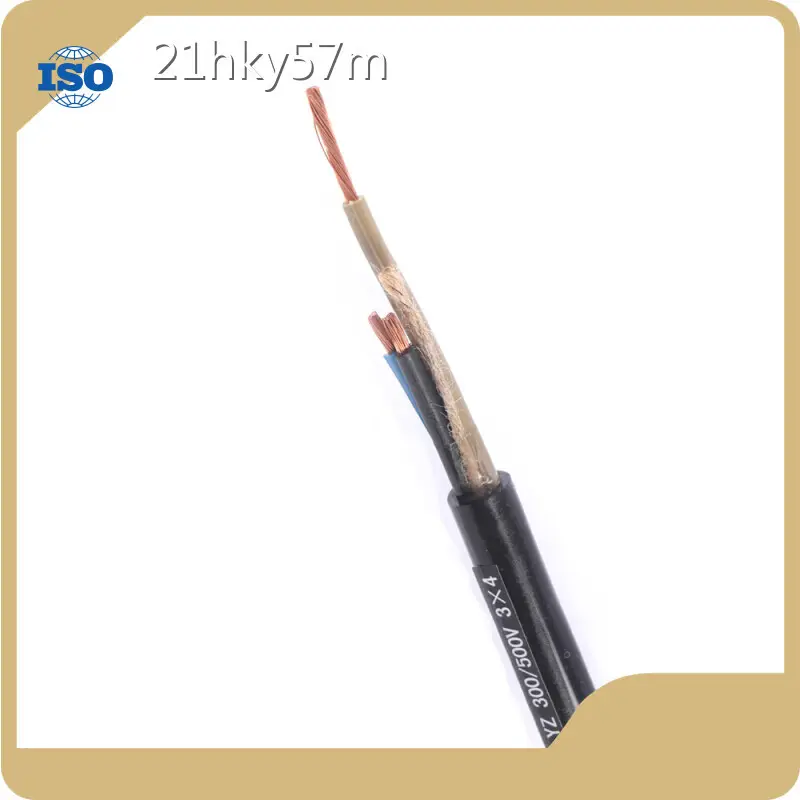

Product display
Product certificate
| Nom cross sectional area mm² |
Insulation thickness mm |
Sheath thickness mm |
Average diameter | Calculated weight Kg/km |
Max.D.C.resistance(20℃) Ω/km |
|||
| Min. mm |
Max. mm |
YQ | YQW | Plain | Metal-coated | |||
| 2×0.3 | 0.5 | 0.7 | 4.6 | 6.6 | 41 | 43 | 69.2 | 71.2 |
| 2×0.5 | 0.5 | 0.7 | 5.0 | 7.2 | 50 | 52 | 39.0 | 40.1 |
| 3×0.3 | 0.5 | 0.7 | 4.8 | 7.0 | 50 | 52 | 69.2 | 71.2 |
| 3×0.5 | 0.5 | 0.7 | 5.2 | 7.6 | 65 | 67 | 39.0 | 40.1 |
| 4×0.3 | 0.5 | 0.8 | 5.0 | 7.5 | 62 | 65 | 69.2 | 71.2 |
| 4×0.5 | 0.5 | 0.8 | 5.6 | 8.5 | 77 | 80 | 39.0 | 40.1 |
| 5×0.3 | 0.5 | 0.8 | 5.3 | 8.0 | 72 | 75 | 69.2 | 71.2 |
| 5×0.5 | 0.5 | 0.8 | 5.8 | 8.9 | 94 | 97 | 39.0 | 40.1 |
