Focusing On The Research, Development, Production And Sales Of Wires And Cables.

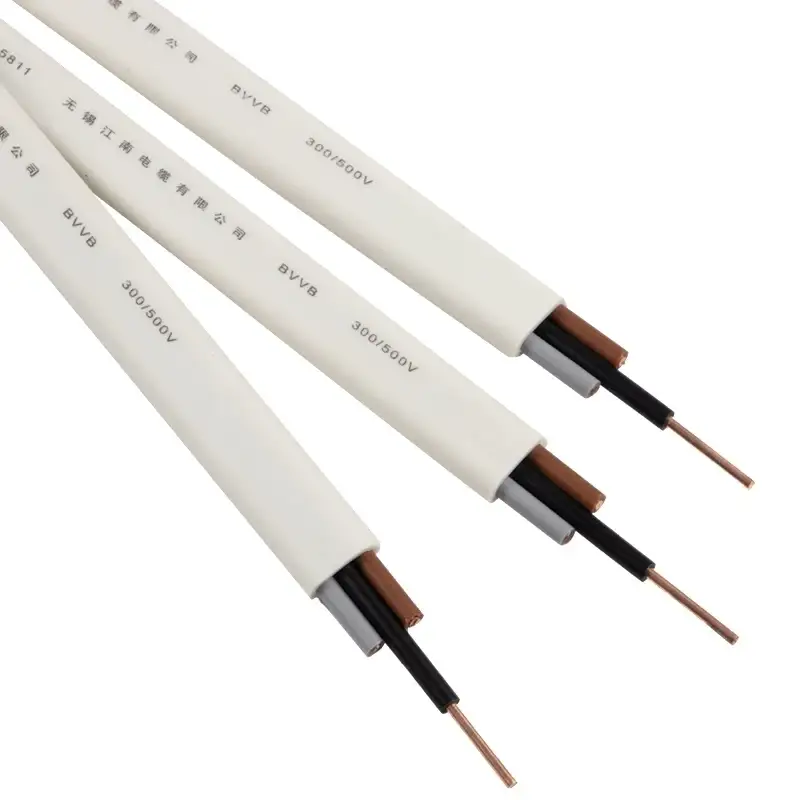

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 1

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 2

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 3

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 4

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire

Samples:

$5.0/meter | Min. order : 1 meter

Shipping:

Support Sea freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1000(meters):15(days),>1000(meters):To be negotiated(days)

Customization:

Customized logo (Min. Order: 100 sets),Customized packaging (Min. Order: 100 sets),Graphic customization (Min. Order: 100 sets)

Model Number:

BVVB

Brand Name:

jiangnan

Inquiry

Write a Review

Packing

100m/roll

Sheath

PVC

MOQ

100Meter

Rated voltage

450/750v

Conductor Type

Solid

Conductor

Copper Core

Product name

BVVB

Conductor Material

Copper

Application

Underground

Type

insulated

Insulation Material

PVC

Place of Origin

Jiangsu, China

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 5

Why Choose Us

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 6

Products Description

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 7

Application:

The wire conductors are used for fifixed protected installations : i.e. ligths or control gear (from offifices, domestic or commercial buildings ...) with voltage ≤ 1000V AC or ≤ 750 V DC .

Installation
Open air, in conduit, in cable trunking, in cable ducting. Thanks to the sliding properties of insulation, The wire is made to
facilitate processing while pulling in.

Cross section [mm²]	Construction [NO./mm]	Insulation thickness [mm]	Diameter [mm]	Approx. weight [kg/km]
1G1.5	1/1.38	0.7	2.78	19.9
1X1.5	1/1.38	0.7	2.78	19.9
1G2.5	1/1.78	0.8	3.38	31.5
1X2.5	1/1.78	0.8	3.38	31.5
1G4	1/2.25	0.8	3.85	46.2
1X4	1/2.25	0.8	3.85	46.2
1G6	1/2.76	0.8	4.36	65.7
1X6	1/2.76	0.8	4.36	65.7

product display

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 8

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 9

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 10

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 11

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 12

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 13

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 14

Recommend Products

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 15

Company Profile

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 16

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 17

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 18

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 19

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 20

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 21

Wuxi Jiangnan Cable Co., Ltd. (hereinafter referred to as “the Company”)a National Key High and New Tech Enterprise specialized in production, sales and research on cables & wires. It is a national customer satisfaction benchmark enterprise, "Top 500 China's Manufacturing Industry", "Top 500 China's Private Enterprises", "Top 500China's Machinery Industry", and "Top 500 China's Energy Groups", "China's Quality Integrity Enterprise". The "Wu Cai" brand was awarded the title of "Top 500 Asian Brands" and "Internationally Famous Brands Focused on Cultivation and Development in Jiangsu Province". The company covers an area of more than 650,000 square meters, with a construction area of 400,000 square meters, and total assets of more than 8 billion Yuan. There are more than 2,200 employees, among them, junior and senior technical and managerial personnel account for more than 30% of the total number of employees. The company is located in the national wire and cable industry base -- Guanlin Town, Yixing City, Jiangsu Province. It has always adhered to the business philosophy of "integrity and pragmatic, customer first" and is willing to supply more high quality products, perfect service, as always with new and old friends at home and abroad for sincere cooperation, mutual benefit and win-win!

Packaging and shipping

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 22

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 23

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 24

FAQ

Multi Core Copper Conductor Pvc Insulated And Sheathed Flat Wire 25

1.What's your advantage? A: Honest business with competitive price and professional service on export process. 2. How I believe you? A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed. 3.Can you give warranty of your products? A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service. 4.Where are you? Can I visit you? A: Sure,welcome to you visit our factory at any time. 5.How about the delivery time? A: Within 7-15 days after we confirm you requirement. 6.what kind of payment does your company support? A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
