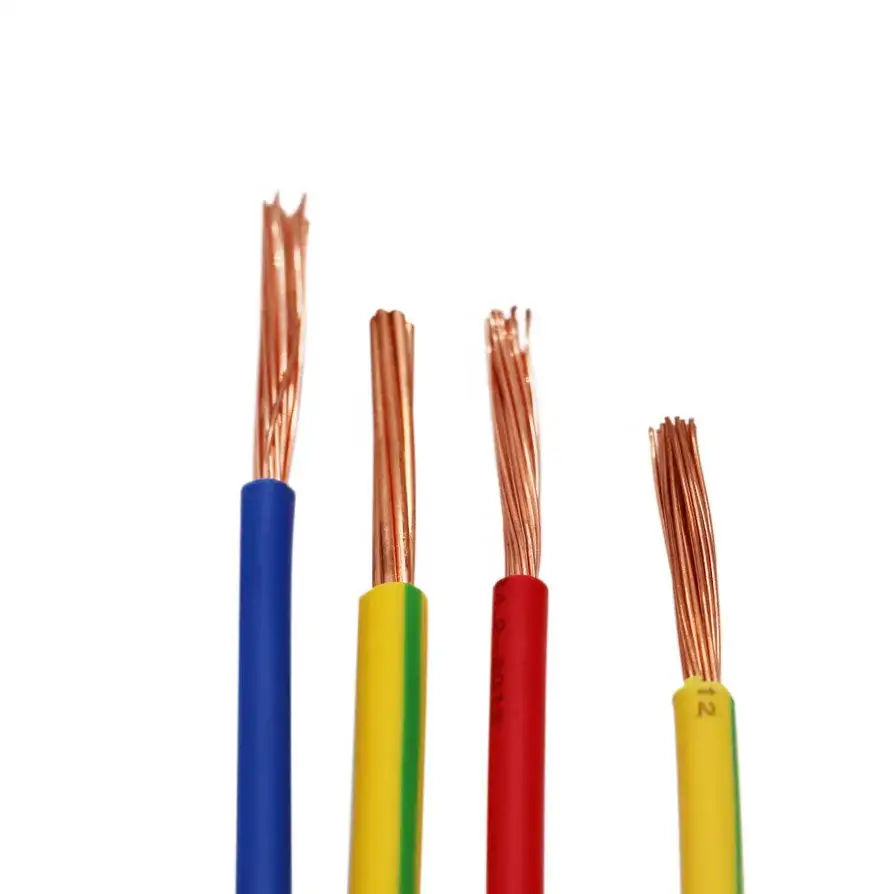

Ls0h Electrical Wires Cross-linking Polyelefine Insulate Wire And Cable With Rated Voltage Up To 450/750kv
5.0
Shipping:
Ocean freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1000(meters):20(days),>1000(meters):To be negotiated(days)
Model Number:
WDZ-BV WDZ-BYJ WDZN-BYJ
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Certificates
CE Certificate
Standard Voltage
300/500V,450/750V
Certified product
WDZ-BYJ ,WDZ-RYJ
Rated Temperature
>=105℃
Sample
Avaliable
Usage
Heat Resistant
Color
customized
Conductor
Copper Core
Jacket
XLPE
Conductor Material
Copper, Tinned copper
Application
Recording studios,electronic circuits,etc
Insulation Material
Polyelefine
Place of Origin
Jiangsu, China
Why Choose Us
Products Description
WDZ-RYJ Cable Wire
Nominal voltage：300/500V Or 450/750V
Rated Temperature：105℃,125℃,150℃
Test：Non-PVC Insulation(XL-PE),Passed UL VW-1Vertical Flame Test.Halogen free XL-PE insulation,Horizontal Flame Test
Nominal voltage：300/500V Or 450/750V
Rated Temperature：105℃,125℃,150℃
Test：Non-PVC Insulation(XL-PE),Passed UL VW-1Vertical Flame Test.Halogen free XL-PE insulation,Horizontal Flame Test
Applications:
Appiy to home Appliance,headlamp,mechanical etc.
Appiy to home Appliance,headlamp,mechanical etc.
Cross-sectional area | INSULATION | MAX Resistance (Ω/km,20℃,DC) | Min. Insulation Resistance MΩ*km | ||||
NOM.THICK. (mm) | MAX.DIA. (mm) | Bare copper | Tinned copper | ||||
0.5 | 0.6 | 2.7 | 36.0 | 36.7 | 0.014 | ||
0.75 | 0.6 | 2.8 | 24.5 | 24.8 | 0.014 | ||
1 | 0.7 | 3.1 | 18.1 | 18.2 | 0.013 | ||
1.5 | 0.7 | 3.4 | 12.1 | 12.2 | 0.011 | ||
2.5 | 0.8 | 4.2 | 7.41 | 7.56 | 0.009 | ||
4 | 0.8 | 4.8 | 4.61 | 4.7 | 0.0077 | ||
6 | 0.8 | 5.4 | 3.08 | 3.11 | 0.0070 | ||
10 | 1.0 | 6.8 | 1.83 | 1.84 | 0.0065 | ||
16 | 1.0 | 8.0 | 1.15 | 1.16 | 0.0050 | ||
25 | 1.2 | 9.8 | 0.727 | 0.734 | 0.0050 | ||
product display
