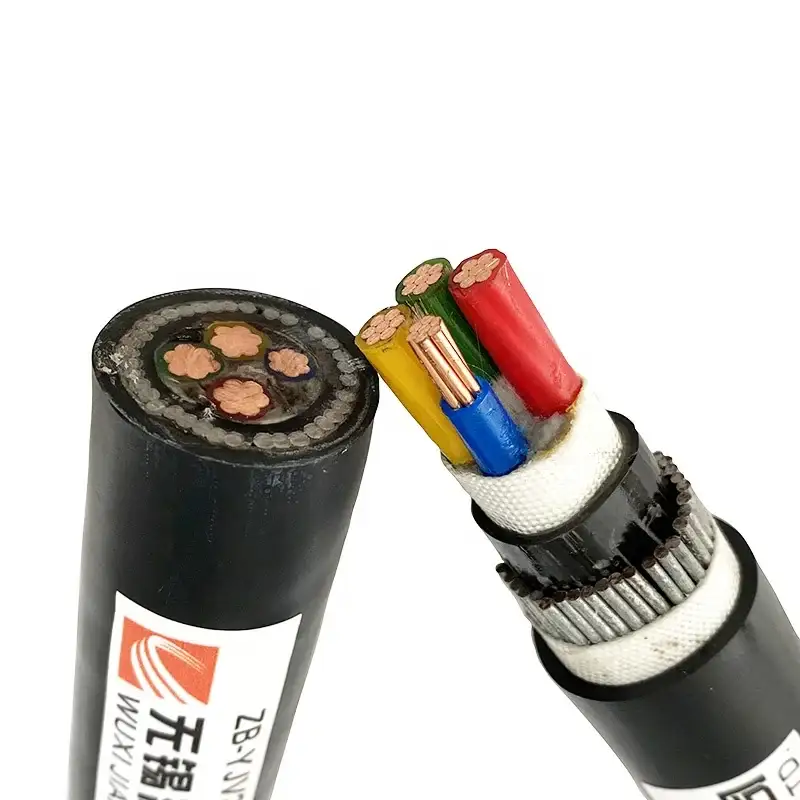

Flame Retardant 0.6/1kv Pvc Epr Xlpe Insulation Power Cable Armoured Copper Electrical Cable
5.0
Samples:
$5.0/meter | Min. order : 1 meter
Shipping:
Express · Ocean freight · Land freight · Air freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1000(meters):15(days),>1000(meters):To be negotiated(days)
Customization:
Graphic customization (Min. Order: 1000 sets),Customized packaging (Min. Order: 1000 sets),Customized logo (Min. Order: 1000 sets)
Model Number:
ZB-YJV32 0.6/1kV
Brand Name:
WUCAI
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Applications
Urban power grids, mines and factories
Certificate
CE TUV
Sheath
Polyvinyl chloride
Cross section
15~800
Voltage
0.6/1kV
Armour
SWA STA AWA ATA
Core
2~5
Insulation
XLPE Insulation
Conductor
Copper 99.995%
Product name
steel wire armoured PVC sheathed power cable
Jacket
PVC
Conductor Material
Copper
Application
Construction
Type
LOW VOLTAGE
Insulation Material
Xlpe
Place of Origin
Jiangsu, China
Products Description
flame retardant 0.6/1kv pvc epr xlpe insulation power cable armoured copper electrical cable
Applications：Urban power grids, mines and factories
YJV22- Mainly used for laying underground, the cable can withstand general external mechanical force, but can not withstand large tensile force;
YJV32- Mainly used for laying in water, or in the soil with a large drop, the cable can withstand considerable tension
Product Name | Copper conductor XLPE insulated steel wire armoured PVC sheathed power cable |
Model | YJY32 |
Rated Voltage | 0.6/1kV |
Conductor | Copper / or aluminum conductor |
Cores | 2~5 |
Nominal cross-sectional area mm² | 15~800 |
Insulation | XLPE |
Sheath material | Polyvinyl chloride |
Conductor type | Class 1, Class 2, Class 5 |
Certification | CE/CCC/TUV/RoHS |
Standard | GB IEC can be customized according to your standards |
Application | For laying in doors、 in tunnels and direct in ground, not required to bear external mechanical forces .Single core cable in magnetic duct is not permissible |
Details Images
Product Paramenters
Nominal cross-sectional area of conductor mm2 | No. of cores | Diamater of conductor mm | Approx overall diameter mm | Cable weight, max kg/km | ||||||||
sector | Circular | Copper YJV32 YJV33 | Aluminum YJLV32 YJLV33 | |||||||||
3x15+1x1 | 3 | 0.7 | — | 15.6 | 397 | — | ||||||
1 | 0.7 | |||||||||||
3x25+1x1.5 | 3 | 0.7 | — | 16.8 | 462 | 406 | ||||||
1 | 0.7 | |||||||||||
3x4+1x2.5 | 3 | 0.7 | — | 18.7 | 668 | 579 | ||||||
1 | 0.7 | |||||||||||
3x6+1x4 | 3 | 0.7 | — | 20.0 | 790 | 655 | ||||||
1 | 0.7 | |||||||||||
3x10+1x6 | 3 | 0.7 | — | 22.9 | 1047 | 827 | ||||||
1 | 0.7 | |||||||||||
3x16+1x10 | 3 | 0.7 | — | 26.1 | 1499 | 1152 | ||||||
1 | 0.7 | |||||||||||
3x25+1X16 | 3 | 0.9 | — | 29.5 | 1973 | 1427 | ||||||
1 | 0.7 | |||||||||||
3x35+1x16 | 3 | 0.9 | — | 31.6 | 2342 | 1621 | ||||||
1 | 0.7 | |||||||||||
3x50+1x25 | 3* | 1.0 | — | 34.9 | 2976 | 1943 | ||||||
1 | 0.9 | |||||||||||
3x70+1x35 | 3* | 1.1 | 37.4 | 40.8 | 4253 | 2805 | ||||||
1 | 0.9 | |||||||||||
3x95+1x50 | 3* | 1.1 | 41.6 | 44.9 | 5383 | 3324 | ||||||
1 | 1.0 | |||||||||||
3x120+1x70 | 3* | 1.2 | 45.6 | 49.8 | 6914 | 4340 | ||||||
1 | 1.1 | |||||||||||
3x150+1x70 | 3* | 1.4 | 49.5 | 542 | 8096 | 4935 | ||||||
1 | 1.1 | |||||||||||
3x185+1x95 | 3* | 1.6 | 55.9 | 59.0 | 9777 | 5784 | ||||||
1 | 1.1 | |||||||||||
3x240+1x120 | 3* | 1.7 | 61.8 | 65.4 | 12144 | 6950 | ||||||
1 | 1.2 | |||||||||||
3x300+1x150 | 3* | 1.8 | 66.6 | 71.6 | 14670 | 8134 | ||||||
1 | 1.4 | |||||||||||
3x400+1x185 | 3* | 2.0 | 75.1 | 79.9 | 18915 | 10621 | ||||||
1 | 1.6 | |||||||||||
•Compacted conductor | ||||||||||||
