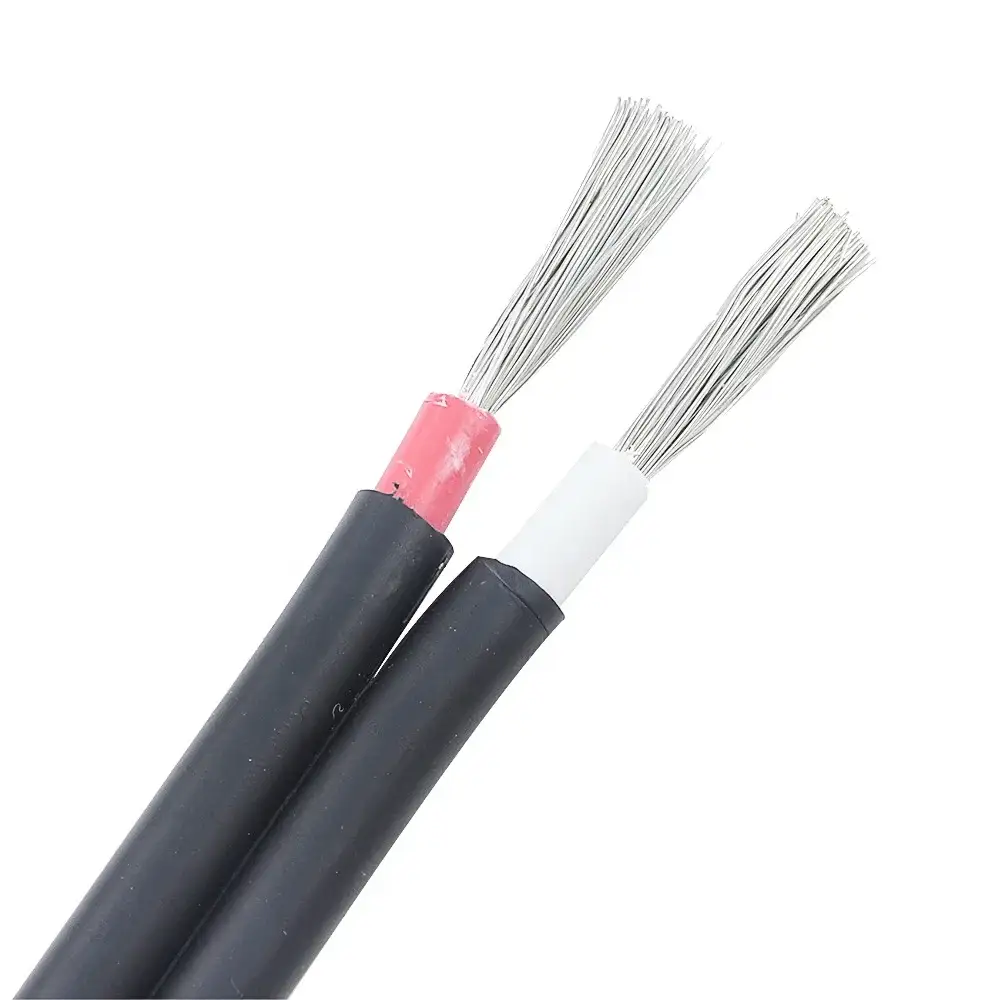

China House Wire 2 Core 4.0 Mm2 Solar Power Cable
5.0
Samples:
$2.0/meter | Min. order : 1 meter
Shipping:
Express · Ocean freight · Land freight · Air freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-500(meters):20(days),>500(meters):To be negotiated(days)
Customization:
Customized logo (Min. Order: 100000 sets),Customized packaging (Min. Order: 100000 sets)
Model Number:
H1Z2Z2-K
Brand Name:
WUCAI
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
cross-sectional area of conductor
1.5~240(mm²)
Ambient temperature
-40℃ ~+90℃
Standards
BS EN 50618:2014
Colors
Red Black or custom
Certificate
TUV
Rated voltage
AC Uo/U1.0/1.0kV, DC 1.5kV
Conductor Type
Tinned Copper Stranded Wire
Core
2core
Product name
XLPO LSZH tinned copper solar photovoltaic cable
Jacket
XLPO
Conductor Material
Tinned Copper
Application
Photovoltaic power generation system, Photovoltaic power generation system
Type
LOW VOLTAGE
Insulation Material
XLPO
Place of Origin
Jiangsu, China
Recommend Products
Model | H1Z2Z2-K |
Conductor | Class 5 tinned copper conductor |
No. of Cores | 2 |
Conductor Type | tinned copper stranded wire |
Insulation | 125℃ cross-linked polyolefin |
Jacket(Sheath) | 125℃ cross-linked polyolefin |
Standards | BS EN 50618:2014 |
DC | 1.5kV |
AC | 1.0/1.0kV |
Application | Photovoltaic power generation system |
Colors | Red Black or custom |
Ambient temperature | -40℃ ~+90℃ |
Max. Temperature at conductor | +120 ℃ |
