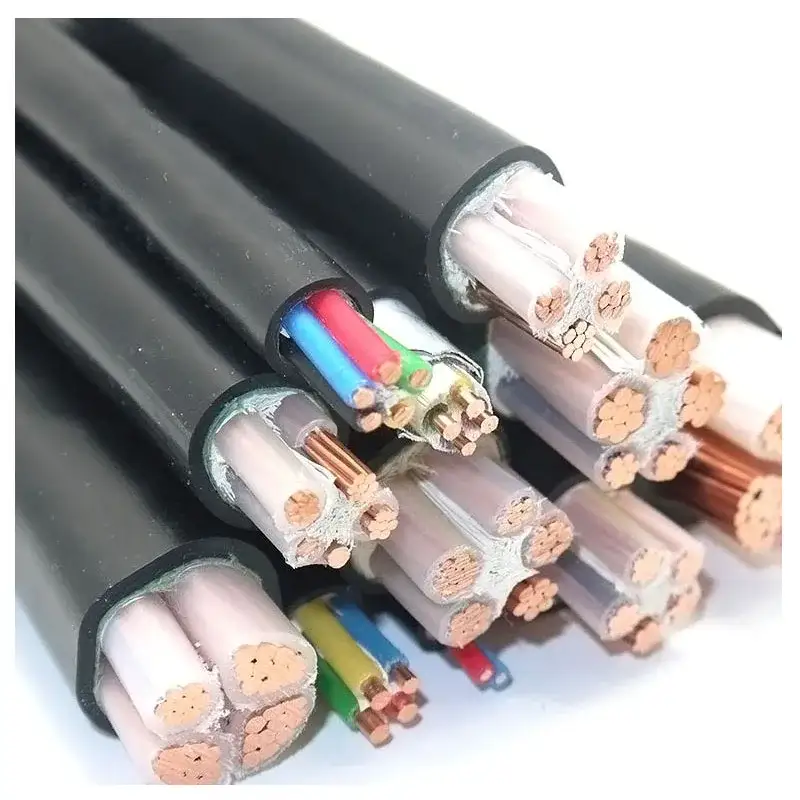

95mm2 600-1000 V Multicore Cab Pvc Insulated Pvc Pe Jacket Vv Vy Vv23 Vv32 Copper Core Steel Tape Wire 3 Phase Underground Cable 1

95mm2 600-1000 V Multicore Cab Pvc Insulated Pvc Pe Jacket Vv Vy Vv23 Vv32 Copper Core Steel Tape Wire 3 Phase Underground Cable 2

95mm2 600-1000 V Multicore Cab Pvc Insulated Pvc Pe Jacket Vv Vy Vv23 Vv32 Copper Core Steel Tape Wire 3 Phase Underground Cable 3

95mm2 600-1000 V Multicore Cab Pvc Insulated Pvc Pe Jacket Vv Vy Vv23 Vv32 Copper Core Steel Tape Wire 3 Phase Underground Cable 4

95mm2 600-1000 V Multicore Cab Pvc Insulated Pvc Pe Jacket Vv Vy Vv23 Vv32 Copper Core Steel Tape Wire 3 Phase Underground Cable 5

95mm2 600-1000 V Multicore Cab Pvc Insulated Pvc Pe Jacket Vv Vy Vv23 Vv32 Copper Core Steel Tape Wire 3 Phase Underground Cable 6

95mm2 600-1000 V Multicore Cab Pvc Insulated Pvc Pe Jacket Vv Vy Vv23 Vv32 Copper Core Steel Tape Wire 3 Phase Underground Cable 7

95mm2 600-1000 V Multicore Cab Pvc Insulated Pvc Pe Jacket Vv Vy Vv23 Vv32 Copper Core Steel Tape Wire 3 Phase Underground Cable

Shipping:

Ocean freight

Place of Origin:

China

Payments:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA

Lead Time:

1-1000(meters):15(days),>1000(meters):To be negotiated(days)

Customization:

Customized logo (Min. Order: 1000 sets),Customized packaging (Min. Order: 1000 sets),Graphic customization (Min. Order: 1000 sets)

Model Number:

VV VY VV23 VV23 VV32 VV33

Brand Name:

WUCAI

Inquiry

Write a Review

Other Core

1,2,3,4,5,3+1,4+1,3+2

Length

send inquiry

Standard

IECA, BS, DIN

Certificate

ROHS CE

Rated voltage

0.6/1 KV

Armour

SWA/ STA/ Non-armoured / Non-magnetic steel tape(wire)

Insulation

PVC

Product name

Multicore Armoured Underground Cable

Jacket

PE/PVC, PVC/PE

Conductor Material

Copper, Copper

Application

Underground, Construction

Type

LOW VOLTAGE

Insulation Material

PVC

Place of Origin

China

Products Description

The steel tape armored VV cable is a VV22 cable. The steel tape armor is used for compression resistance and can be used for burial.

Rated voltage: generally 0.6/1KV, or below 35kv

Conductor: Copper
Armoured: SWA(Steel Wire Armoured) / STA(Steel Tape Armoured) or Non-Armoured/Non-magnetic steel tape(wire)
Insulation: PVC

Jacket: PVC/PE
Cores: 1, 2, 3, 4, 5, 3+1, 4+1, 3+2
Section Area: 1.5mm2-300mm2
Standard: IEC 60502, BS 7870, GB/T12706 or other.
Packaging: Iron Or Wooden Drum
Application: Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on.
We can customize the size according to your requirement

Working temperature:	The long-term working temperature is not more than 70 °C, and the laying temperature is not lower than 0 °C; the allowable temperature of the cable conductor is 160 °C during short circuit (long-term duration is less than 5s).
Allowable bending radius:	not less than 10 times the outer diameter of the cable
Usages:	Generally used as a power transmission hub, often buried in the soil or laid indoors, in trenches, tunnels, with small insulation distance between lines, no poles and towers, small footprint, and basically no space on the ground.
Common specifications and models:	the number of cores includes 2 cores, 3 cores, 4 cores, 5 cores, 3+1, 3+2, 4+1;
The cross- sectional area (mm²)	The cross section includes from 1.5 mm2--240mm2, such as VV395+150 cable represents a cable composed of 3 strands of 95 square cores plus 1 strand of 50 square cores, other synonymous.
Product Name	-- The full name of VV cable is copper (aluminum) core PVC insulated PVC sheathed power cable, which is an important member of power cables. The two letters V represent that the insulation and sheath materials are all PVC.
VV & YJV	-- VV cable is a very common type of power cable, and its function is the same as that of YJV cable most of the time, although theoverall performance is not as good as that of YJV cable, and it is gradually replaced by YJV cable.

Product Paramenters

Production range of cable
Type			No. of cores	Nominal Cross sectional area mm2
Coper conductor	Aluminum conductor		No. of cores	Nominal Cross sectional area mm2
VV VY VV62 VV63	VLV VLY VLV62 VLV63	1	1.5~800 10~800
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	2	1.5～400 4~400 10~400
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	3	1.5~630 4~630 10~630
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	4	1.5~500 4~500 10~500
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	3+1	1.5~630 4~630 10~630
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	5	1.5~500 4~500 10~500
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	4+1	1.5~～500 4~500 10~500
VV VY VV22 VV23 VV32 VV33	VLV VLY VLV22 VLV23 VLV32 VLV33	3+2	1.5~500 4~500 10~500
*The armoured single-core cables are used for D.C. system only.As for A. C. system, non-magneticarmour material should be used, or magnetic isolation should be applied.
