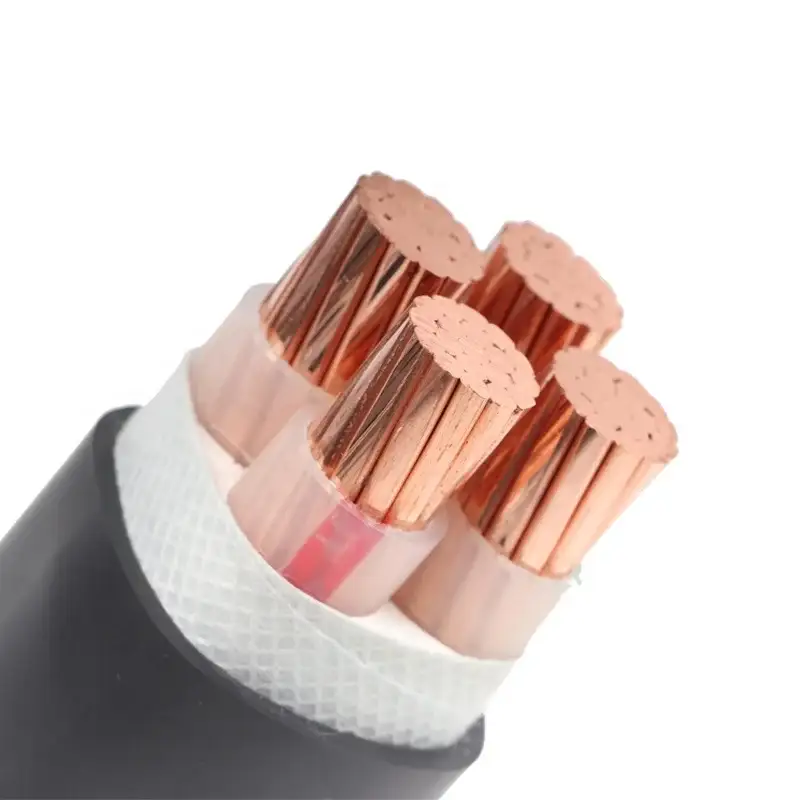

95mm Low Voltage 0.6/1kv Cable 2464 4 Core Cable Electric Cable China Factories Prices
5.0
Samples:
$5.0/meter | Min. order : 1 meter
Shipping:
Ocean freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-1000(meters):15(days),>1000(meters):To be negotiated(days)
Customization:
Graphic customization (Min. Order: 1000 sets),Customized packaging (Min. Order: 1000 sets),Customized logo (Min. Order: 1000 sets)
Model Number:
YJV 0.6/1kV
Brand Name:
WUCAI
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
flexible stranded
Class 5
stranded
Class 2
solid
Class 1
Certificate
CE TUV
Sheath
PVC Shealth
Voltage
0.6/1kV
Armour
SWA STA AWA ATA
Core
1~5
Insulation
XLPE Insulation
Conductor
Copper
Jacket
PVC
Conductor Material
Copper
Application
Construction
Type
LOW VOLTAGE
Insulation Material
Xlpe
Place of Origin
Jiangsu, China
Products Description
Wuxi Jiangnan Cable Co., Ltd
More than 37 years knowledge in cables industry, we supply reliable cables world widely. The company mainly produces products of more than 100 varieties and more than 40,000 specifications in three categories, including power cables up to 500kV, electrical equipment cables, and bare wires up to 1100kV. The Company can also customize special wire and cables for users with various special performance requirements. The company's flexible mineral insulated fireproof cables, photovoltaic cables, electric vehicle charging cables, locomotive cables, UHV supporting heat-resistant expanded conductors and other special cables are well received by the market and users.
Details Images
Product Paramenters
Naninal cross-sectional area of conductor mm2 | Insulation thickness mm | Approx overall diameter mm | Cable weight ,Max kg/km | ||
sector | circular | ||||
4x1.5 | 0.7 | — | 11.2 | 161 | |
4x2.5 | 0.7 | — | 12.1 | 210 | |
4x4 | 0.7 | — | 13.3 | 280 | |
4x6 | 0.7 | — | 14.5 | 370 | |
4X10 | 0.7 | — | 17.9 | 567 | |
4x16 | 0.7 | — | 20.3 | 806 | |
4x25 | 0.9 | — | 24.1 | 1205 | |
4X35 | 0.9 | — | 26.9 | 1599 | |
4x50* | 1.0 | — | 29.6 | 2148 | |
4x70* | 1.1 | 32.5 | 35.2 | 3050 | |
4x95* | 1.1 | 37.0 | 39.0 | 4106 | |
4x120* | 1.2 | 40.0 | 43.6 | 5113 | |
4x150* | 1.4 | 43.5 | 47.6 | 6302 | |
4x185* | 1.6 | 50.5 | 53.1 | 7840 | |
4x240* | 1.7 | 56.5 | 59.6 | 10156 | |
4X300* | 1.8 | 61.5 | 66.3 | 12671 | |
4x400* | 2.0 | 69.0 | 69.0 | — | |
Company Profile
Wuxi Jiangnan Cable Co., Ltd. (here in after referred to as “the Company”)a National Key High and New Tech Enterprise specialized in production, sales and research on cables & wires. It is a national customer satisfaction benchmark enterprise, "Top 500 China's Manufacturing Industry", "Top 500 China's Private Enterprises", "Top 500 China's Machinery Industry", and "Top 500 China's Energy Groups", "China's Quality Integrity Enterprise". The "Wu Cai" brand was awarded the title of "Top 500 Asian Brands" and "Internationally Famous Brands Focused on Cultivation and Development in Jiangsu Province".
The company covers an area of more than 650,000 square meters, with a construction area of 400,000 square meters, and total assets of more than 8 billion Yuan. There are more than 2,200 employees, among them, junior and senior technical and managerial personnel account for more than 30% of the total number of employees.
The company has always adhered to the business philosophy of "integrity and pragmatic, customer first" and is willing to supply more high quality products, perfect service, as always with new and old friends at home and abroad for sincere cooperation, mutual benefit and win-win!
Our Advantages
Certifications
Customer Photos
FAQ
1. who are we?
Wuxi Jiangnan Cable Co., Ltd. is a National Key High and New Tech Enterprise specialized in production, sales and research on cables & wires. It has enterprise the "Top 500 China's Manufacturing Industry", "Top 500 China's Private Enterprises", "Top 500China's Machinery Industry", and "Top 500 China's Energy Groups", "China's Quality Integrity Enterprise". The "Wu Cai" brand was awarded the title of "Top 500 Asian Brands". The company was listed in Hong Kong in April 2012, stock code: 01366.
2.what can you buy from us?
The company mainly produces products of more than 100 varieties and more than 40,000 specifications in three categories, including power cables up to 500kV, electrical equipment cables, and bare wires up to 1100kV.The company also produces flexible mineral insulated fireproof cables, photovoltaic cables, electric vehicle charging cables, locomotive cables, UHV supporting heat-resistant expanded conductors and other special cables.
3. how can we guarantee quality?
The company always regards quality and service as the foundation of the company's survival. It conducts strict inspections from raw materials entering the factory to finished products leaving the factory. The company adopts foreign advanced online polarization meters, high-voltage series resonance, partial discharge and other high-tech instruments to monitor the manufacturing process. The quality of the company is strictly controlled, so that the stability of the product can be reliably guaranteed.
4. why should you buy from us not from other suppliers?
The company currently has 1600 sets of advanced production and testing equipment, including V C V vertical and C C V catenary ultra-high voltage cross-linked cable production lines from Finland, the Coiling and frame twisting equipment from Germany and France, wire drawing production line from Italy and ultra-high voltage cable partial discharge detection system from Switzerland.
In addition, We have a national post-doctoral research workstation, technology center, laboratory and testing center. Our products have passed many international standard certifications, such as C E, S A B S, RoHS, C B, T U V.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
